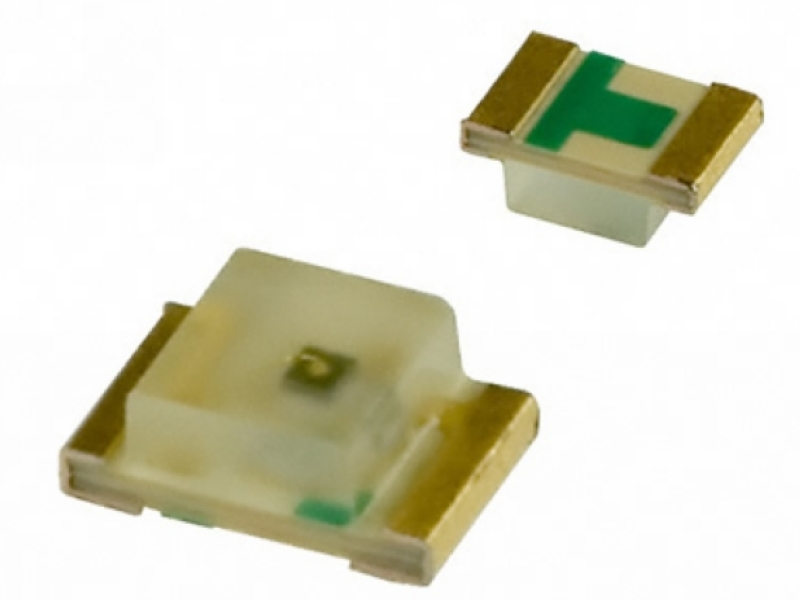

SMD TOP Lighting LED 0805

Model: KLS9-T0805
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details

Part.No.	Package	Size	Chip Emitted Color	Chip Peak wave Length	Lens Appearance	Absolute Max. Ratings				Electro-optical Data(at 20mA)			Viewing angle 2θ1/2
				Chip Peak wave Length		Absolute Max. Ratings				Vf		Iv
				λp		Δλ	Pd	If	Peak	type	max	type
		mm		nm		nm	mw	mA	mA	V	V	mcd	deg
KLS9-T0805URC	0805	2.0×1.25	Ultra Bright Red	624	Water Clear	20	70	30	70	2.2	2.6	180	120
KLS9-T0805UEC	0805	2.0×1.25	Ultra Bright Orange	605	Water Clear	20	70	30	70	2.2	2.6	115	120
KLS9-T0805UBC	0805	2.0×1.25	Ultra Bright Blue	467	Water Clear	20	90	30	100	3.2	3.6	150	120
KLS9-T0805UGC	0805	2.0×1.25	Ultra Bright Green	521	Water Clear	20	90	30	100	3.2	3.6	550	120
KLS9-T0805UYC	0805	2.0×1.25	Ultra Bright Yellow	592	Water Clear	20	70	30	70	2.2	2.6	115	120
KLS9-T0805YGC	0805	2.0×1.25	Ultra Bright Yellow Green	572	Water Clear	20	70	30	70	2.2	2.6	56	120
KLS9-T0805CW	0805	2.0×1.25	Ultra Bright White	0.29	Yellow Diffuse	~	90	30	100	3.2	3.6	800	120
