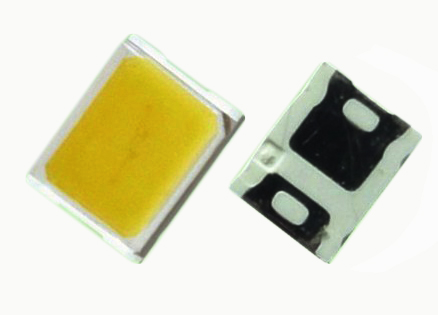

SMD Slide Lighting LED 2.8*3.5mm
- Product Details
Features:
Package( L/W/H ) : 2.8×3.5×0.8 mm
Color: Ultra Bright Warm White/Ultra Bright White
Lens: Yellow Diffuse Flat Mold
EIA STD Package
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder And Wave Solder Process
| Part.No. | Package | Size | Chip Emitted Color | Chip Peak wave Length |
Lens Appearance |
Absolute Max. Ratings | Electro-optical Data(at 20mA) | Viewing angle 2θ1/2 |
|||||
| Vf | Iv | ||||||||||||
| λp | Δλ | Pd | If | Peak | type | max | type | ||||||
| mm | nm | nm | mw | mA | mA | V | V | mcd | deg | ||||
| KLS9-S2835WW | 2835 | 2.8×3.5 | Ultra Bright Warm White | 0.4 | Yellow Diffuse | ~ | 230 | 60 | 230 | 3.4 | 3.9 | 22 | 120 |
| KLS9-S2835CW | 2835 | 2.8×3.5 | Ultra Bright White | 0.29 | Yellow Diffuse | ~ | 230 | 60 | 230 | 3.4 | 3.9 | 22 | 120 |
