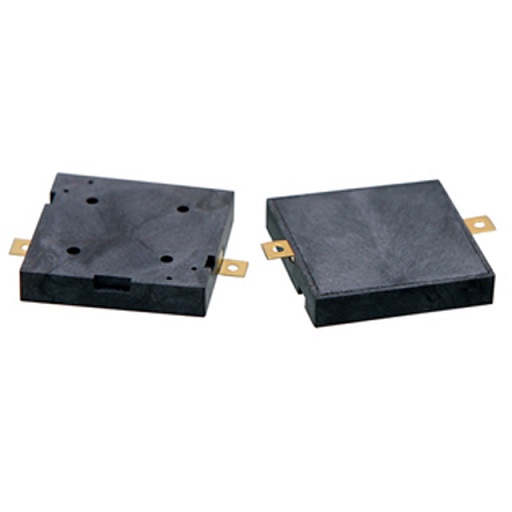

SMD piezo buzzer,Externally driven type
small in size，small power consumption.Mainly used in household appliances, electric ovens, microwave ovens and so on.

Rated Voltage:                           5Vp-p
Operating Voltage:                    1-25Vp-p
Rated Current :                          8mA Max.
S.P.L.(@10cm):                          75dB Min at Rated Voltage at 10cm
Resonance Frequency :            4.1±0.5KHz
Capacitance at 100Hz:             16000±30%pF at 100Hz 1V
Operating Temp:                        -30~+85°C
Weight:                                        1.0g
Housing Material:                    LCP

Size: 13*13*2.5mm

KLS3-SMT-13x2.5J.pdf
