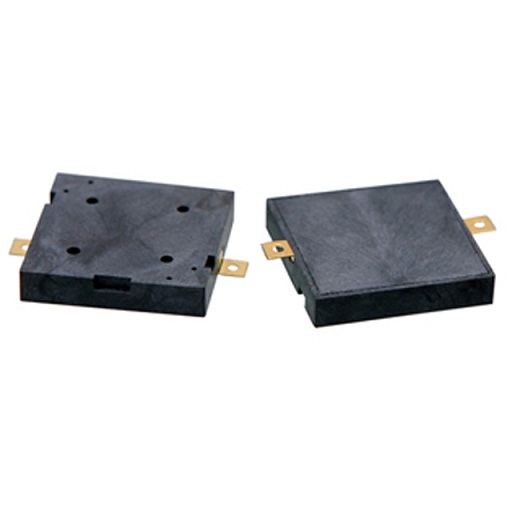

SMD piezo buzzer,Externally driven type
- Product Details
SMD piezo buzzer,Externally driven type
small in size，small power consumption.Mainly used in household appliances, electric ovens, microwave ovens and so on.
Rated Voltage: 5Vp-p
Operating Voltage: 1-25Vp-p
Rated Current : 3mA Max.
S.P.L.(@10cm): 75dB Min at Rated Voltage at 10cm
Resonance Frequency : 4.0±0.5KHz
Capacitance at 100Hz: 16000±30%pF at 100Hz 1V
Operating Temp: -30~+85°C
Weight: 1.0g
Housing Material: LCP
Size: 13*13*2.5mm
