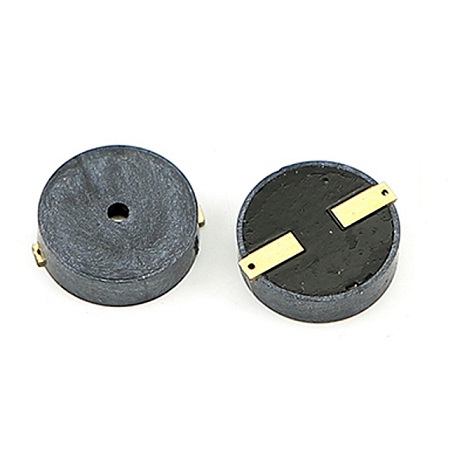

SMD piezo buzzer,Externally driven type
small in size，Clear and thorough sound quality.Mainly used in smart furniture，induction cooker，rice cooker.

Rated Voltage:                           5Vp-p
Operating Voltage:                    1-25Vp-p
Rated Current :                          3mA Max.
S.P.L.(@10cm):                          75dB Min at Rated Voltage at 10cm
Resonance Frequency :            5.2±0.5KHz
Capacitance at 100Hz:             11000±30%pF at 100Hz 1V
Operating Temp:                        -30~+85°C
Operating Temp:                        -30~+85°C
Housing Material:                    LCP

Size: Φ10 x 3.1mm
