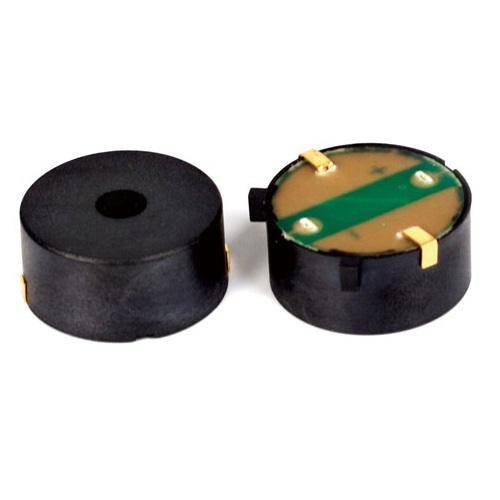

SMD piezo buzzer,Externally driven type

Rated Voltage: 12Vp-p
Operating Voltage: 1-30Vp-p
Rated Current : 5mA Max.
S.P.L.(@10cm): 80dB Min at Rated Voltage at 10cm
Resonance Frequency : 4.0±0.5KHz
Capacitance at 100Hz: 19000±30%pF at 100Hz 1V
Operating Temp: -30~+85°C
Weight: 3g
Housing Material: PPS

Size: Φ23 x 11.1mm

KLS3-SMT-23x11.pdf
