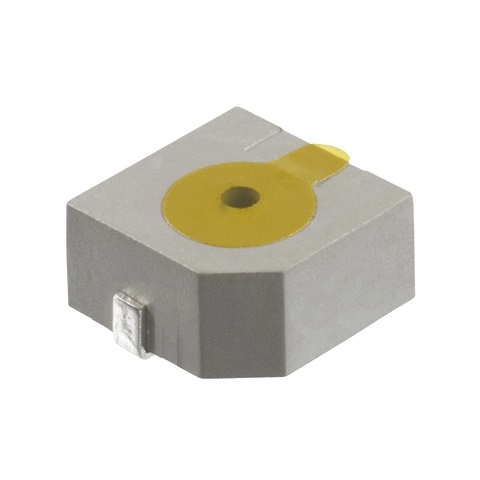

SMD piezo buzzer,Externally driven type

Rated Voltage: 10Vp-p
Operating Voltage: 1-30Vp-p
Rated Current : 7mA Max.
S.P.L.(@10cm): 86dB Min at Rated Voltage at 10cm
Resonance Frequency : 3.0±0.5KHz
Capacitance at 100Hz: 20000±30%pF at 100Hz 1V
Operating Temp: -30~+85°C
Weight: 4.0g
Housing Material: LCP

Size: 18 x 18x12mm

KLS3-SMT-18x12.pdf
