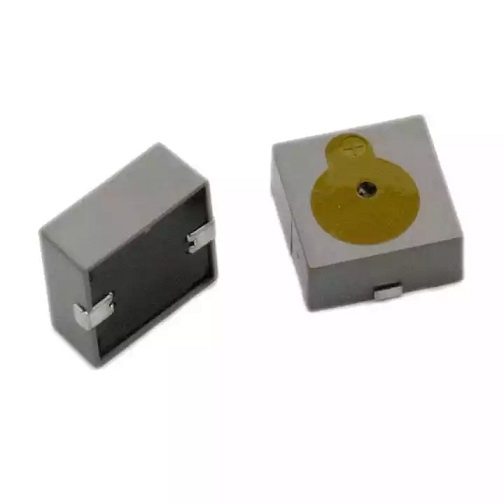

SMD piezo buzzer,Externally driven type

Model: KLS3-SMT-17*08C
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

SMD piezo buzzer,Externally driven type
Rated Voltage: 12VDC
Operating Voltage: 3-20VDC
Rated Current : 8mA Max.
S.P.L.(@10cm): 83dB Min at Rated Voltage at 10cm
Resonance Frequency : 4.0±0.5KHz
Tone Nature: Single
Operating Temp: -30~+85°C
Weight: 2.6g
Housing Material: PPS

Size: 17*17*7.8mm

PDF

KLS3-SMT-17x08C.pdf
