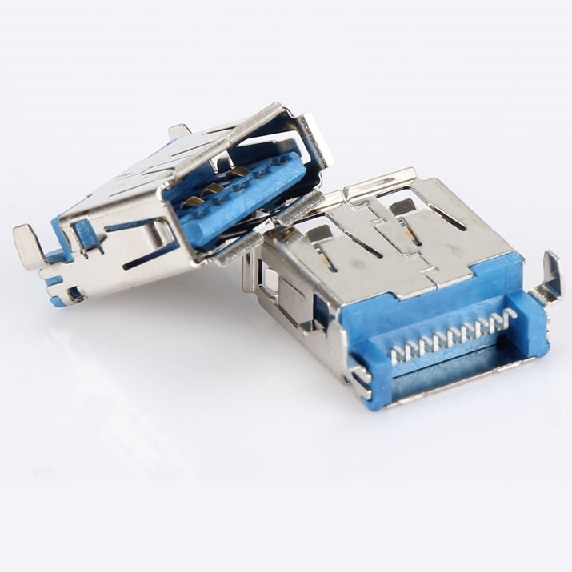

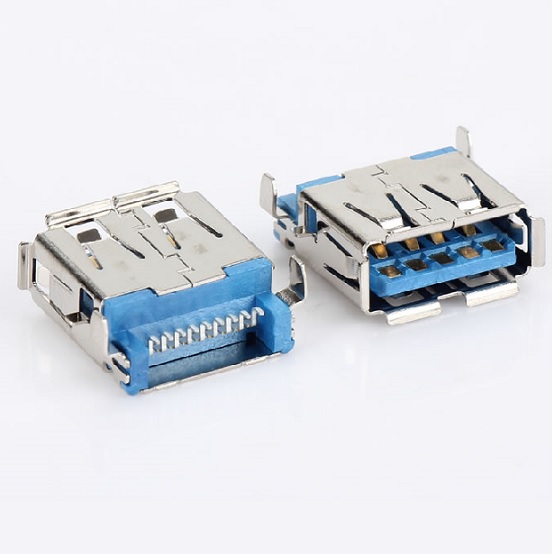

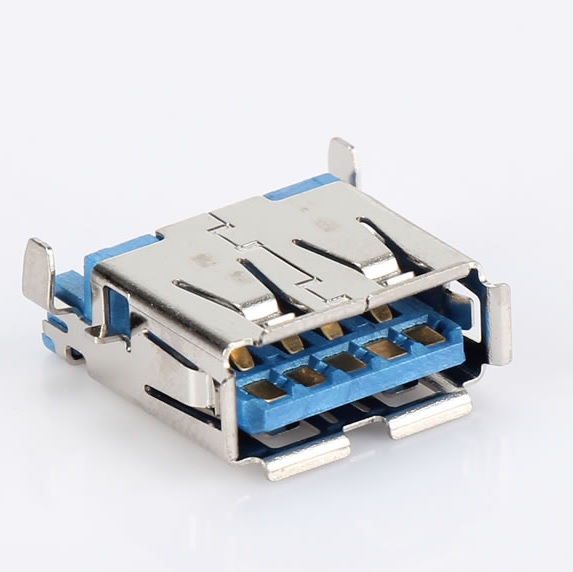

SMD Mid mount H3.5mm A Female 9P USB 3.0 Connectors
- Product Details
Electrical
Contact Current Rating:1.5 A For
PIN1&PIN4 0.25 A ,Other Contacts.
Withstanding Voltage:100VAC(RMS)
Contact Resistance: 30mΩ MAX
Insulator Resistance: 1000MΩ MIN
Mechanical
Mating Force: 35N MAX
Withdrawal:10N MIN
Durability:5000 CYCLES
Temperature Range: -40°C ~ +85°C
