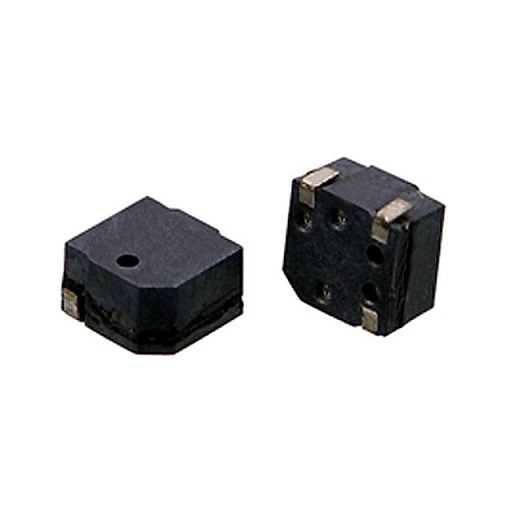

SMD magnetic buzzer,Externally driven type,Top sound

Oscillation Frequency:            4.0KHz
Rated Voltage:                        3Vo-p
Operating Voltage:                  2~4Vo-p
Rated Current:                        110mA Max.at Rated Voltage
Sound Pressure Level:           75dB Min.at 10 cm at Rated Voltage
Coil Resistance:                      12±3Ω
Operating Temp:                      -40~+105°C
Weight:                                     0.6g
Housing Material:                     LCP

Size:

KLS3-SMT-05x03.pdf
