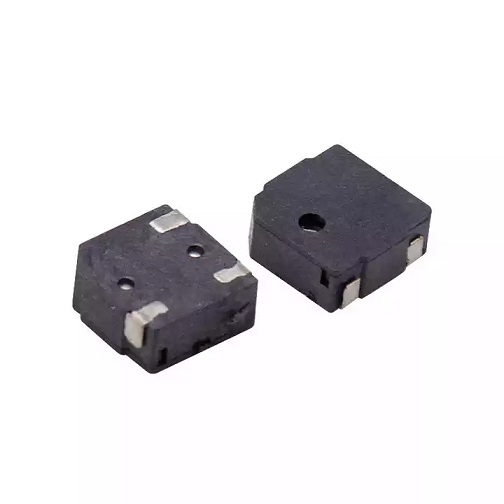

SMD magnetic buzzer,Externally driven type,Top sound

Oscillation Frequency: 4.0KHz
Rated Voltage: 3Vo-p
Operating Voltage: 2~4Vo-p
Rated Current: 110mA Max.at Rated Voltage
Sound Pressure Level: 75dB Min.at 10 cm at Rated Voltage
Coil Resistance: 12±3Ω
Operating Temp: -40~+105°C
Weight: 0.1g
Housing Material: LCP

Size:

KLS3-SMT-05x02.pdf
