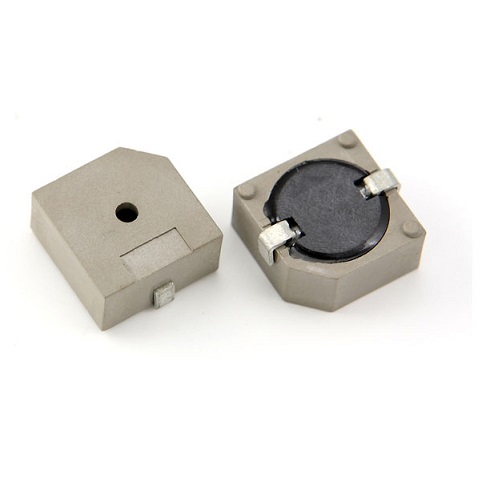

SMD magnetic buzzer,Externally driven type,Top sound

Oscillation Frequency: 2.4KHz
Rated Voltage: 5Vo-p
Operating Voltage: 4~7Vo-p
Rated Current: 50mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min.at 10 cm at Rated Voltage
Coil Resistance: 45±3Ω
Operating Temp: -40~+105°C
Weight: 2.0g
Housing Material: PPS

Size:

KLS3-SMT-13x07F.pdf
