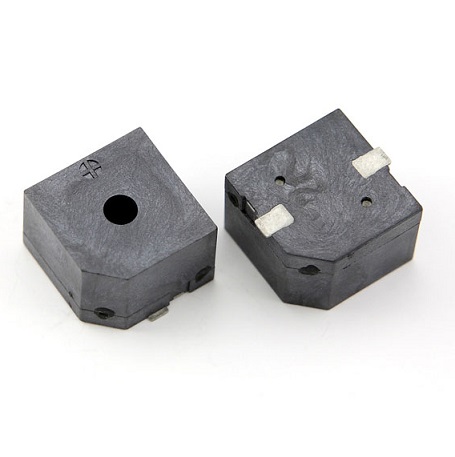

SMD magnetic buzzer,Externally driven type,Top sound

Model: KLS3-SMT-13*07B
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

SMD magnetic buzzer,Externally driven type,Top sound Oscillation Frequency: 2.4KHz Rated Voltage: 5Vo-p Operating Voltage: 3~7Vo-p Rated Current: 90mA Max.at Rated Voltage Sound Pressure Level: 90dB Min.at 10 cm at Rated Voltage Coil Resistance: 47±4Ω Operating Temp: -40~+105°C Weight: 2.0g Housing Material: PPS Size:

PDF

KLS3-SMT-13x07B.pdf
