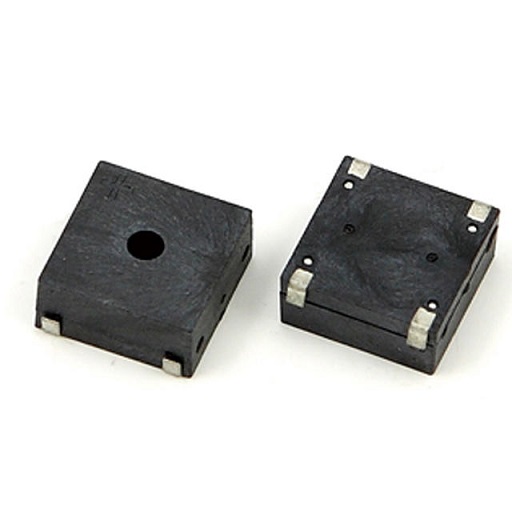

SMD magnetic buzzer,Externally driven type,Top sound

Oscillation Frequency: 3.0KHz
Rated Voltage: 3Vo-p
Operating Voltage: 2~4Vo-p
Rated Current: 80mA Max.at Rated Voltage
Sound Pressure Level: 87dB Min.at 10 cm at Rated Voltage
Coil Resistance: 18±3Ω
Operating Temp: -40~+105°C
Weight: 0.6g
Housing Material: LCP

Size:

KLS3-SMT-09x4.5C.pdf
