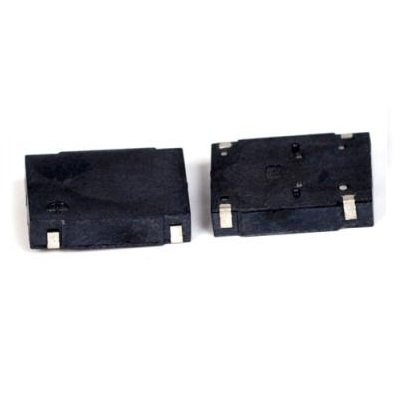

SMD magnetic buzzer,Externally driven type,Side sound

Oscillation Frequency: 2.731KHz
Rated Voltage: 5Vo-p
Operating Voltage: 4~6Vo-p
Rated Current: 80mA Max.at Rated Voltage
Sound Pressure Level: 87dB Min.at 10 cm at Rated Voltage
Coil Resistance: 40±4Ω
Operating Temp: -40~+105°C
Weight: 1.0g
Housing Material: LCP

Size:

KLS3-SMT-14x03.pdf
