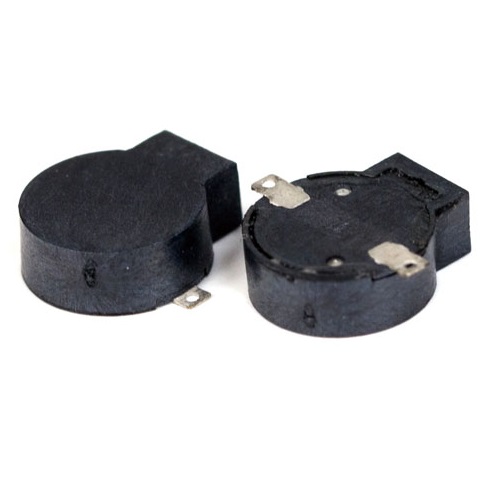

SMD magnetic buzzer,Externally driven type,Side sound

  • Model: KLS3-SMT-09*3.5
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

SMD magnetic buzzer,Externally driven type,Side sound

Oscillation Frequency: 2.73KHz
Rated Voltage: 3.6Vo-p
Operating Voltage: 2.5~4.5Vo-p
Rated Current: 100mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min.at 10 cm at Rated Voltage
Coil Resistance: 16±3Ω
Operating Temp: -40~+105°C
Weight: 0.8g
Housing Material: LCP

Size:
