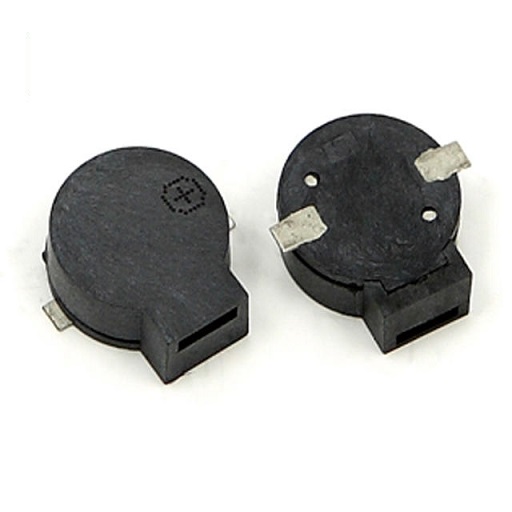

SMD magnetic buzzer,Externally driven type,Side sound

Oscillation Frequency: 2.7KHz
Rated Voltage: 3Vo-p
Operating Voltage: 2~4Vo-p
Rated Current: 100mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min.at 10 cm at Rated Voltage
Coil Resistance: 16±3Ω
Operating Temp: -40~+105°C
Weight: 0.8g
Housing Material: LCP

Size:

KLS3-SMT-09x3.2.pdf
