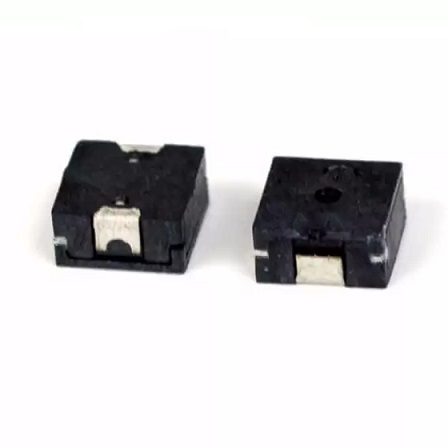

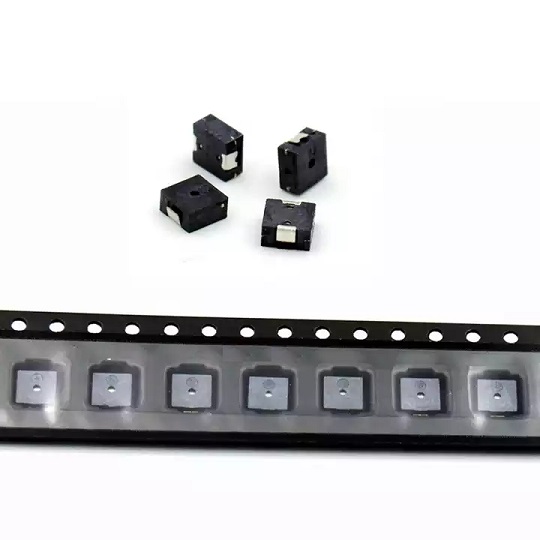

SMD magnetic buzzer,Externally driven type,Side sound

Model: KLS3-SMT-04*02
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MD magnetic buzzer,Externally driven type,Side sound Oscillation Frequency: 4.0±0.5KHz Rated Voltage: 3Vo-p Operating Voltage: 2~4Vo-p Rated Current: 90mA Max.at Rated Voltage Sound Pressure Level: 70dB Min.at 10 cm at Rated Voltage Coil Resistance: 17±3Ω Operating Temp: -40~+105°C Weight: 0.1g Housing Material: LCP Size: 4*4*2.0mm

PDF

KLS3-SMT-04x02.pdf
