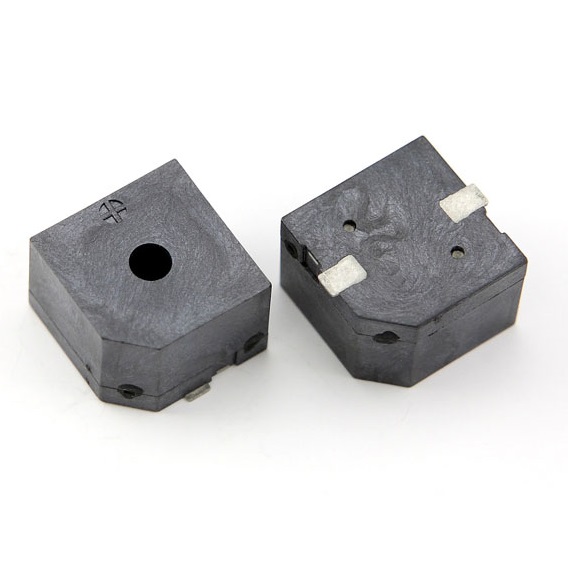

SMD magnetic buzzer,Externally driven type,Top sound

Oscillation Frequency: 2.0KHz
Rated Voltage: 12Vo-p
Operating Voltage: 8~16Vo-p
Rated Current: 40mA Max.at Rated Voltage
Sound Pressure Level: 90dB Min.at 10 cm at Rated Voltage
Coil Resistance: 140±14Ω
Operating Temp: -40~+105°C
Weight: 2.0g
Housing Material: PPS

Size:

KLS3-SMT-13x10B.pdf
