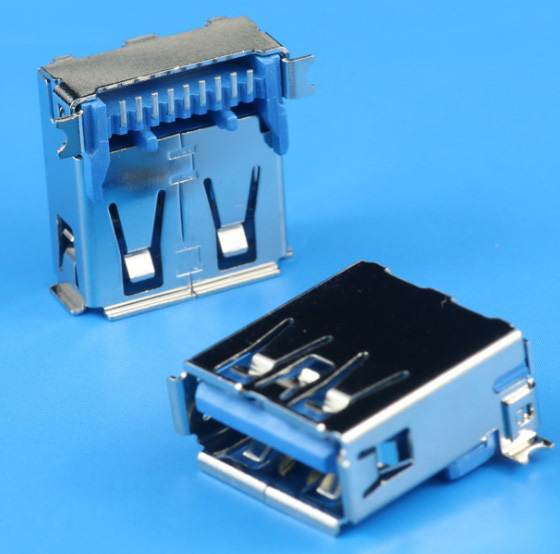

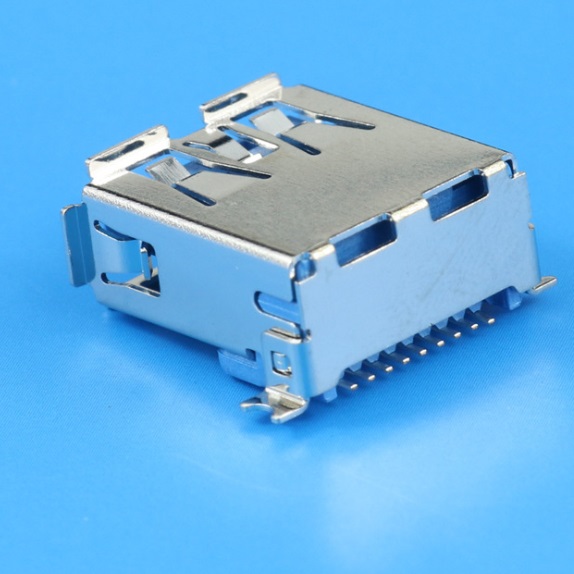

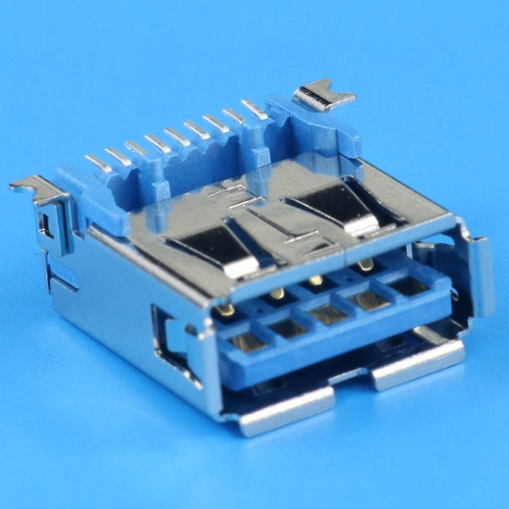

SMD A Female 9P USB 3.0 Connectors

  • Model: KLS1-3029
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM

Electrical
Contact Current Rating: 1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
Insulation Resistance:1000MΩ Min
