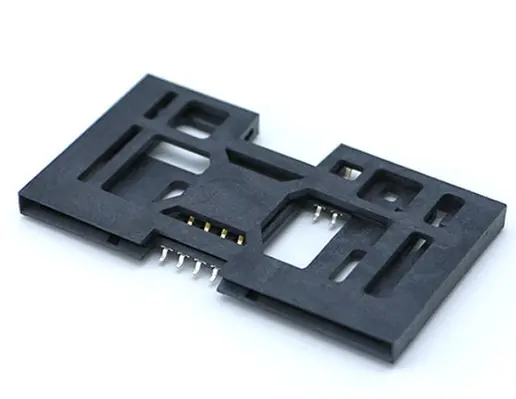

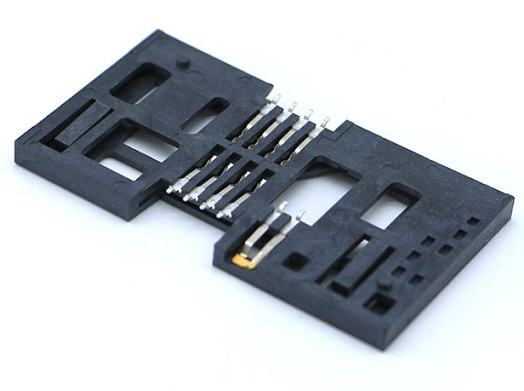

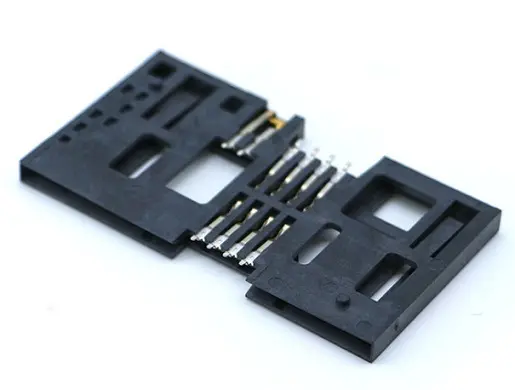

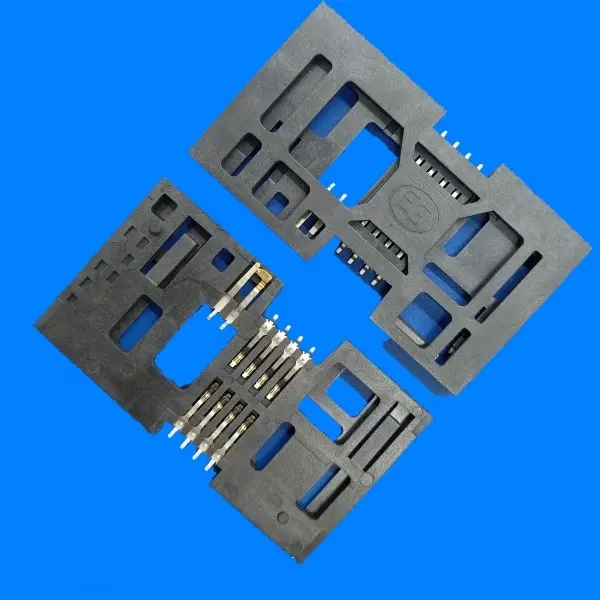

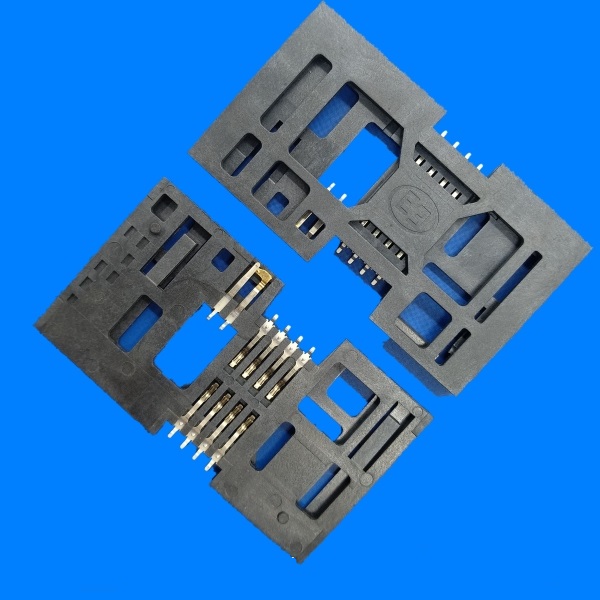

Smart Card Connector PUSH PULL,8P+2P

Electrical:
Durability:100000 cycles min.
Contact Resistance:50Ω typical,100Ω Max.
Insulation Resistance:>1000MΩ/500V DC.
Solderability
Vapor phase:215ºC.30sec.Max.
IR feflow:260ºC.10sec.Max.
Manual soldering:370ºC.3sec.Max.
4.Environmental Characteristics
Operating Temperature:-40ºC TO +85ºC
Operating humidity:10%-+95%RH.

KLS1-ISC-010.pdf
