Smart Card Connector PUSH PULL,8P+2P

  • Model: KLS1-ISC-F011D
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

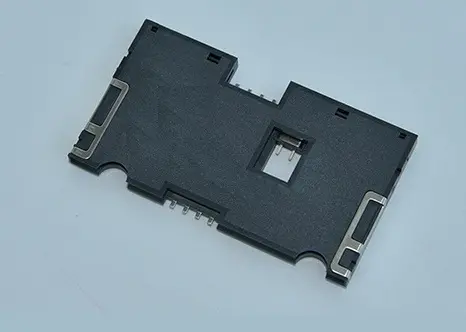

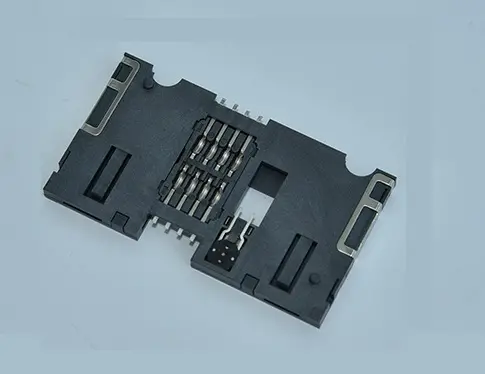

Smart Card Connector PUSH PULL,8P+2P

Material:
Housing:LCP,UL94V-0
Contact: Copper Alloy.

Electrical:
Current Rating:2 A
Contact Resistance:20mΩ max.
Insulation Resistance:1000 MΩ min.
Dielectric Withstanding Voltage:AC 500V(r.m.s)/60s.
Durability:100000 cycles min.
Operating Temperature:-55℃~+125℃
