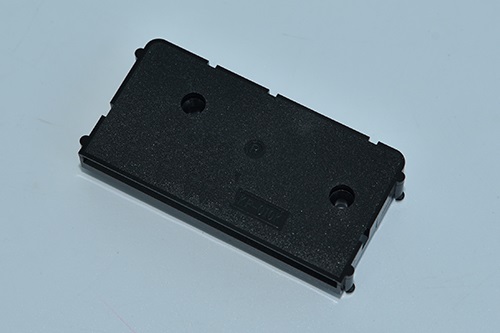

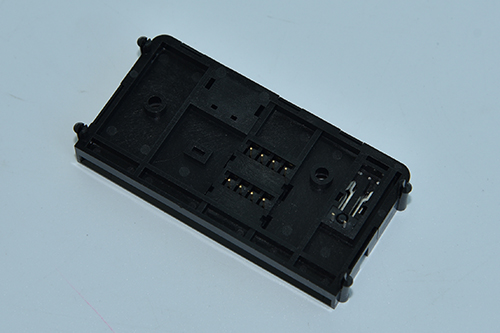

Smart Card Connector PUSH PULL,8P+2P

Electrical Characteristics
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Contact Resistance:20mΩ max.
Insulation Resistance:1000MΩ min
Current Rating: 2A
Dielectric withstanding voltage:AC 500V(r.m.s) /60s
Operating temperature: -40°C ~ +85°C
Product temperature resistance: 260±5°C 10S

KLS1-ISC-F010K.pdf
