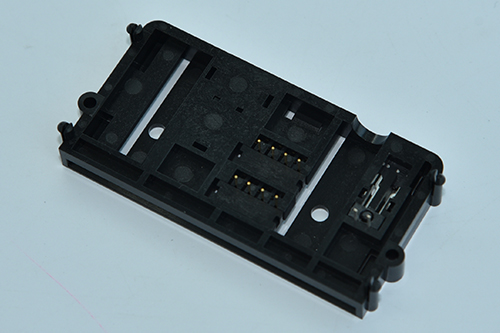

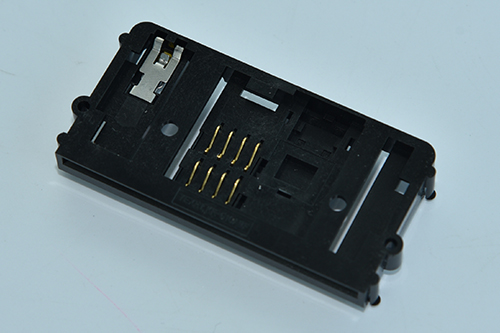

Smart Card Connector PUSH PULL,8P+2P

Material:
Housing:LCP,UL94V-0
Contact: Copper Alloy.

Electrical:
Current Rating:2 A
Contact Resistance:20mΩ max.
Insulation Resistance:1000 MΩ min.
Dielectric Withstanding Voltage:AC 500V(r.m.s)/60s.
Durability:100000 cycles min.
Operating Temperature:-55℃~+125℃

KLS1-ISC-F010A-MF.pdf
