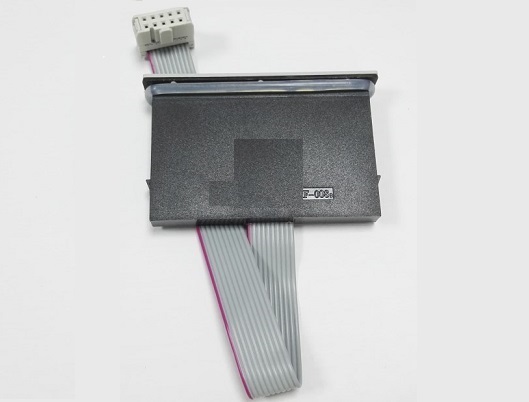

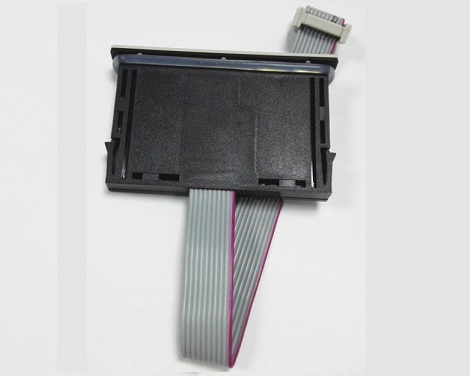

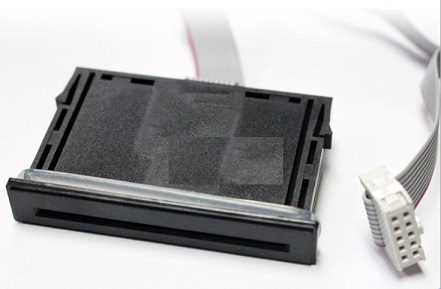

Smart Card Connector PUSH PULL,8P+2P

Material:
Base:Hi-temp Thermoplastic,Black UL94V-0
Cover:SUS,Solder area:Tin plated
Data Contact:Copper Alloy,Contact area:Gold plated
Current Rating: 1A
Contact Resistance:50mΩ typical,100mΩ max.
Insulation Resistance:1000MΩ min
Dielectric withstanding voltage:AC 500V(r.m.s) /60s
Durability:100,000 cycles min.
Operating temperature: -40°C ~ +85°C
Product temperature resistance: 260±5°C 10S

KLS1-ISC-F008B.pdf
