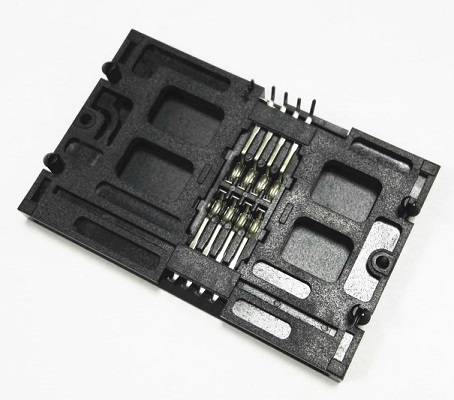

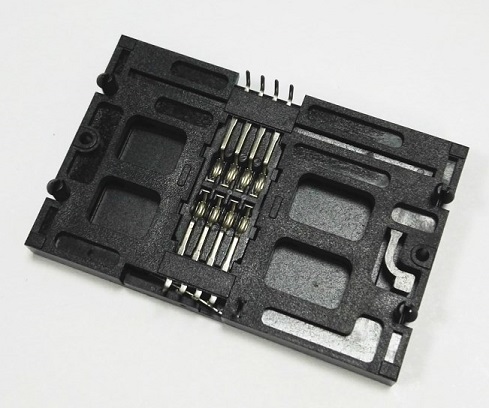

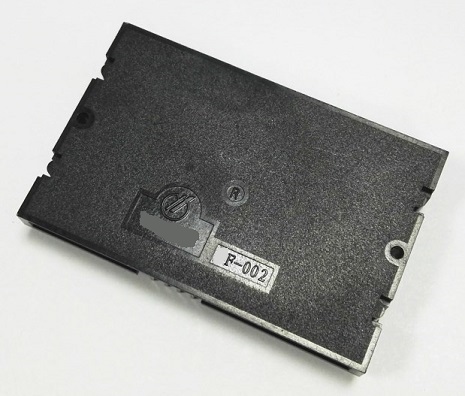

Smart Card Connector PUSH PULL,8P+2P
- Product Details
Smart Card Connector PUSH PULL,8P+2P,With post
Material:
1. Bracket: PC UL94V-0, black
2. Cover plate: bracket: PC UL94V-0, black
3. Small door: bracket: PC UL94V-0, black
4. Reed: phosphor copper, bottom Ni, surface local Au
5. Large switch: phosphor copper
6. Small switch: phosphor copper
7. Button: PC, black
8. Small door spring: stainless steel
Electrical characteristics
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
Durability:100,000 cycles min.
Operating temperature: -40°C ~ +85°C
Product temperature resistance: 260±5°C 10S
