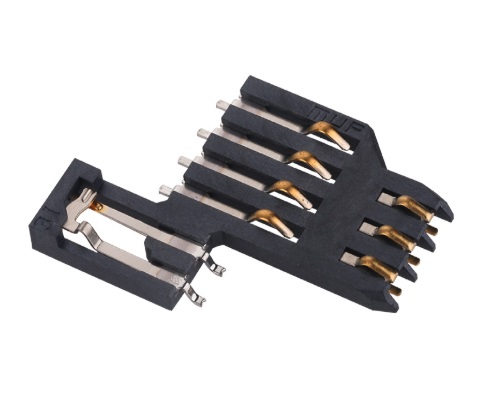

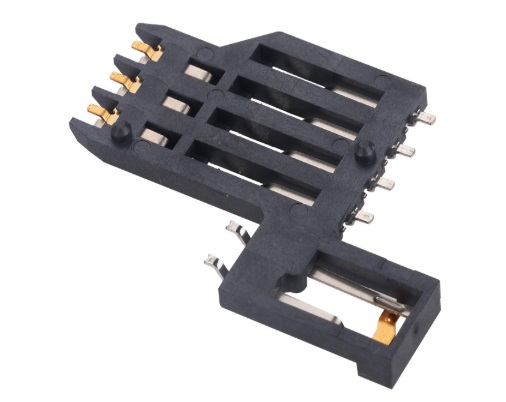

Smart Card Connector 8P+2P with CD Pin

  • Model: KLS1-SCC-C724-4
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Smart Card Connector 8P+2P with CD Pin

Material:
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Plating:Tin Gold or Duplex plated.
Standard:Gold flash 3u” all over Nickel
Electrical:
Current Rating:1A.
Dielectric Withstanding Voltage:500V AC
Insulation Resistance:1000MΩ Min
Contact Resistance:50mΩ Max.
Life: 30000 Cycles
Operating Temperature: -45ºC~+105ºC
