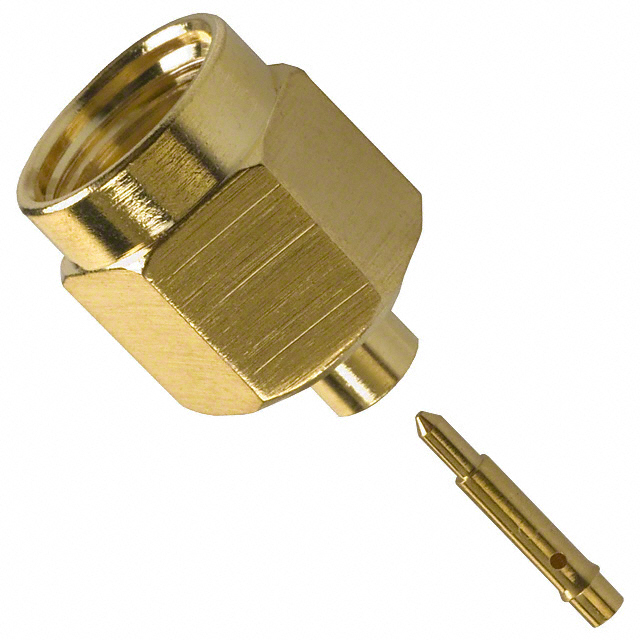

SMA Cable Connector Straight (Plug, Male,50Ω) RG-405
- Product Details
SMA Cable Connector Plug Male Straight (Cable Group: RG-405)
Electrical Specifications:
1. Materials And Finishs:
Body:Brass, Gold Plating
Contact Pin:Brass, Gold Plating
Insulator:Teflon,Natural
Gasket:Silicone,Red
2.Elecrical:
Impedance:50ΩM
Frequency Range:DC-18 GHz
Dielectric Withstanding Voltage :1000VRMS,Min.
3.Mechanical:
Durability:500Cycles Min.
Temperature Range:-65%%DC TO +165%%DC
