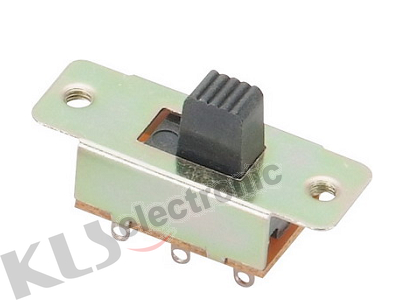

Slide Switch (2P2T)

Model: KLS7-SS38-22J29
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Slide Switch ON-ON(2P2T)
SPECIFICATIONS
Rating: 1.5A 250VAC
Contact Resistance: 30mΩ Max
Insulation Resistance:500VDC 100MΩ Min
Dielectric Strength: 500V AC 1 Minute
Operating Force: 100gf~800
Electrical Life :10,000 cycles

PDF

KLS7-SS38-22J29.pdf
