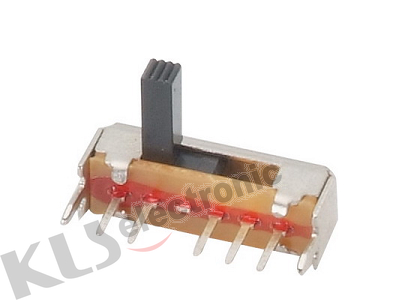

Slide Switch (1P4T)

Model: KLS7-SK04-14D02
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Slide Switch ON-ON -ON-ON (1P4T)
SPECIFICATIONS
Rating: 0.3A 50VDC
Contact Resistance: 30mΩ Max
Insulation Resistance:500VDC 100MΩ Min
Dielectric Strength: 500V AC 1 Minute
Operating Force: 100gf~ 800gf
Electrical Life :10,000 cycles

PDF

KLS7-SK04-14D02.pdf
