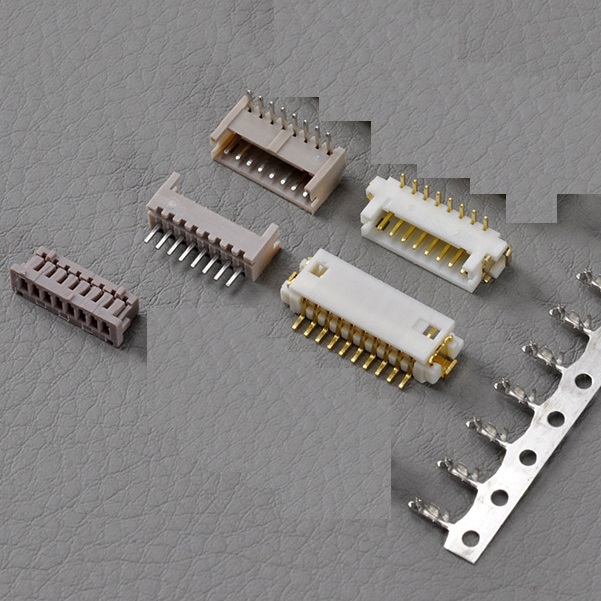

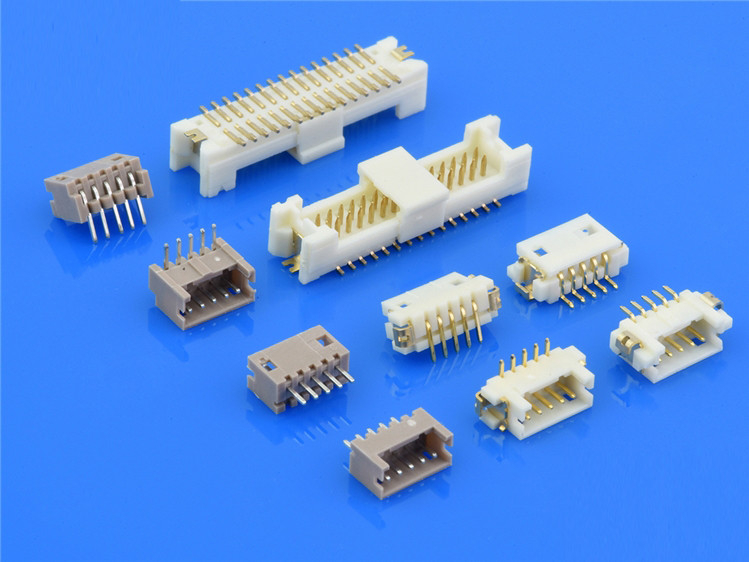

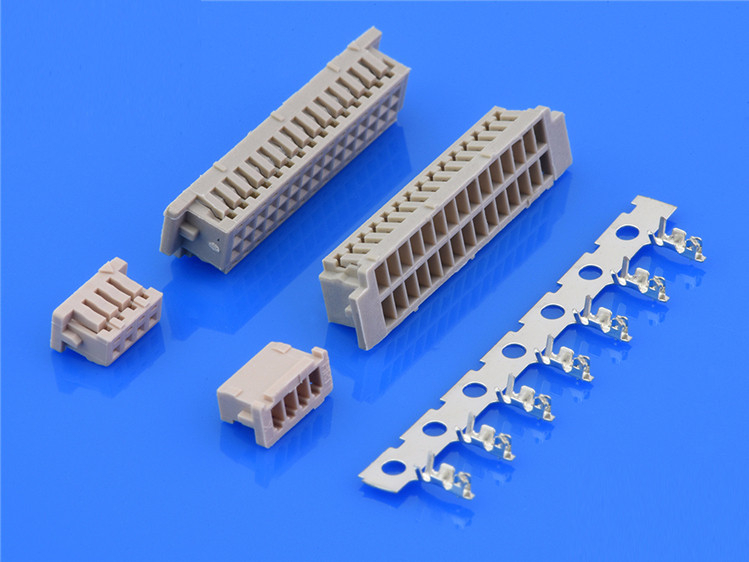

1.25mm Pitch HRS DF13 type wire to board connector Single row

Order information:
KLS1-XL4-1.25-1-XX-H
Pitch:1.25mm
1-Single layer
XX-No.of 02~15 pins
H-Housing  T-Terminal  S-Straight male pin R-Right angle male pin  VM-Vertical SMT Pin  RM-Horizontal SMT Pin
Specifications
◆Material: PA66/PA6T UL 94V0 (Lead Free)
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:150V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:30mΩ Max.

KLS1-XL4-1.25-1.pdf
