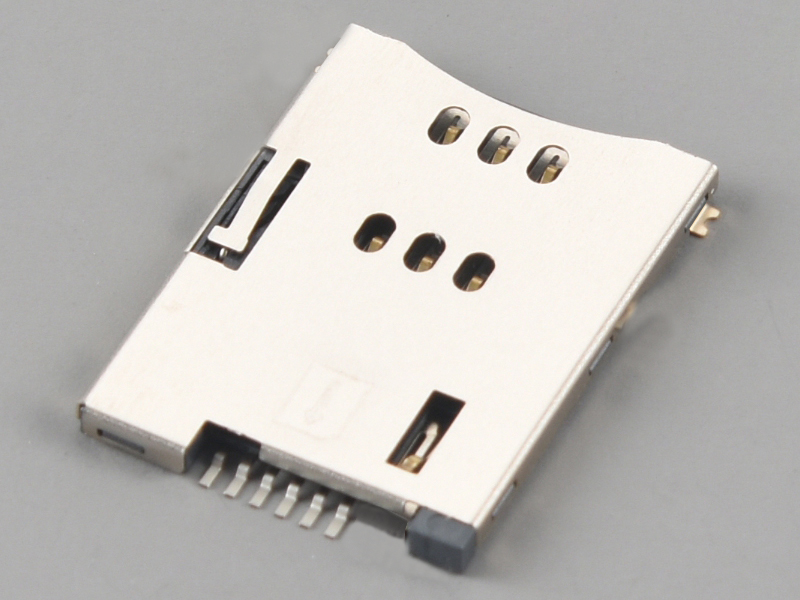

SIM Card Connector,PUSH PUSH,6P,H1.85mm,without Post

Material:
Housing:Hi-Temp Plastic,UL94V-0.Rated.
Contact:Copper Alloy.
Shell:Stainless Steel.SUS 301,T=0.20mm.

Plating:
Contact area:G/F Plated over 30u” Nickel
Solder area:80u” Tin Plated over 30u” Nickel.
Under plate:30u” Min Nickel.
Shell:30u” Min,Nickel Plated Over All,Solder Area:Gold Flash.

Electrical:
Current Rating:0.5 A
Dielectric Withstanding Voltage:250V AC/DC.
Insulation Resistance:500MΩ Min.
Contact Resistance:100mΩ Max.
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-030E.pdf
