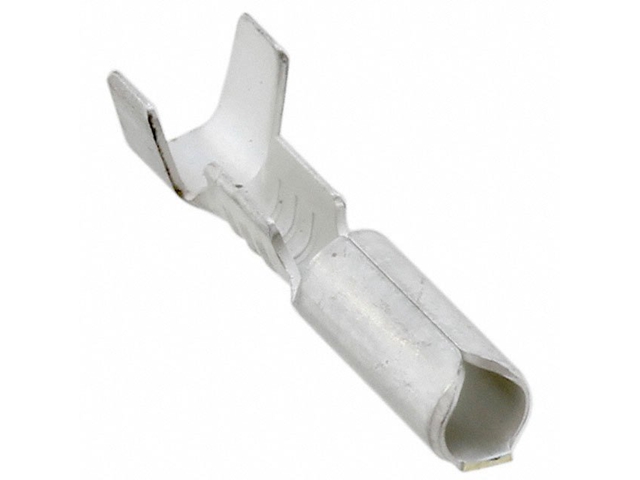

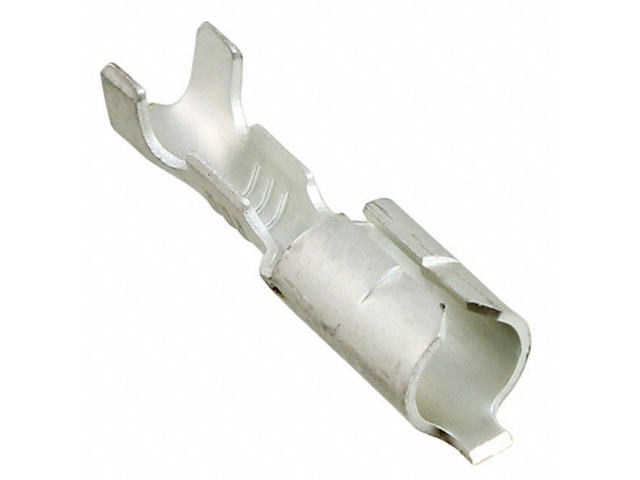

SHUR PLUG Female Terminal
- Product Details
| P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | ||||||||
| D | E | L | T | H1 | WS | H2 | IS | (AWG) | REEL | |||||
| L-KLS8-SHF010401 | Brass | Tin | 3.50 | 6.5 | 17.3 | 0.40 | 3.60 | 3.60 | 5.30 | 5.00 | 16~20 | 10000 | L-KLS8-SHM010401 | |
| L-KLS8-SHF010302 | Brass | Tin | 3.96 | 6.2 | 16.0 | 0.35 | 3.20 | 3.20 | 4.90 | 5.00 | 18~22 | 10000 | L-KLS8-SHM010302 | |
