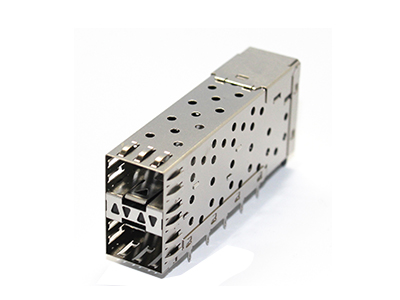

SFP connector

  • Model: KLS12-SFP+06
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

MECHANICAL :
CAGES: COPPER ALLOY, THICKNESS 0.25MM.
CONNECTOR HOUSING: GLASS FILLED PLASTIC, 94 V-0, COLOR: BLACK.
OVERMOLDED TERMINAL HOUSING: GLASS FILLED PLASTIC, 94 V-0, COLOR: BLACK.
LIGHTPIPES: POLYCARBONITE, 94 V-0, COLOR: CLEAR.
LIGHTPIPE HOLDER: GLASS FILED PLASTIC, 94 V-0, COLOR: BLACK.
CLIP: STAINLESS STEEL.
TERMINAL: POSPHRR BRONZE.
GOLD PLATING FOR CONTACT AREA, THICKNESS SEE OPTION.
TIN PLATING FOR PRESS FIT AREA.
NICKEL PLATING AS UNDERLAYER FOR WHOLE TERMINAL

ELECTRICAL :
VOLTAGE: 120 VOLTS AC.
CURRENT: SIGNAL APPLICATION ONLY.
DIFFERENTIAL IMPEDANCE: 100 OHMS.

TEMPERATURE :
OPERATION: -40℃ ~+85℃
STORAGE: – 40℃ ~+85℃
LIGHTPIPE PAD LAYOUT IS FOR LOW-PROFILE LED PACKAGE. LED SIZE(LxWxH): 2x1x0.4MM MAX.
RoHS COMPLIANCE.
