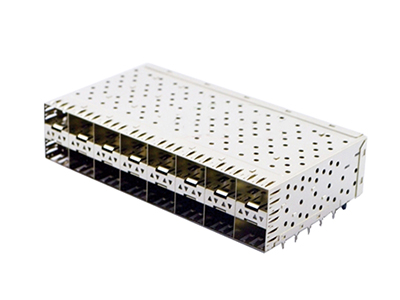

SFP Connector

  • Model: KLS12-SFP+10
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

ELECTRICAL:
VOLTAGE: 30 VOLTS AC.
CURRENT: 0.50 A PER CONTACT.
CONTACT RESISTANCE: 50 MILLIOHMS MAX.
INSUL ATION RESISTANCE: 1000 MEGAOHMS MIN AT 100 VDC FOR 1 MINUTE.
DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC MIN.

TEMPERATURE:
OPERATION: -40℃ ~+85℃
STORAGE: -55℃ ~+105℃
LIGHTPIPE PAD LAYOUT IS FOR LOW-PROFILE LED PACKAGE.
LED SIZE(LxWxH): 2x1x0.4MM MAX.
RoHS COMPLIANCE.
