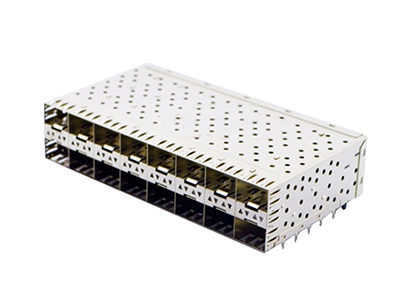

SFP connector

  • Model: KLS12-SFP-021
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

MECHANICAL :
CAGES: NICKEL SILVER ALLOY, THICKNESS 0.25MM.
CONNECTOR HOUSING: GLASS FILLED PLASTIC, 94 V-0, COLOR: BLACK.
OVERMOLDED TERMINAL HOUSING: GLASS FILLED PLASTIC, 94 V-0, COL OR: BLACK.
LIGHTPIPES: POLYCARBONITE, 94 V-0, COLOR: CLEAR.
LIGHTPIPE HOLDER: GLASS FILLED PLASTIC, 94 V-0, COLOR: BLACK.
CLIP: STAINLESS STEEL.
EMI SPRING: COPPER ALLOY.
TERMINAL: POSPHRR BRONZE.
GOLD PLATING FOR CONTACT AREA, THICKNESS SEE OPTION.
TIN PLATING FOR PRESS FIT AREA.
NICKEL PLATING AS UNDERLAYER FOR WHOLE TERMINAL.

ELECTRICAL :
VOLTAGE: 30 VOLTS AC;
CURRENT: 0.50 A PER CONTACT;
CONTACT RESISTANCE: 50 MILLIOHMS MAX;
INSULATION RESISTANCE: 1000 MEGAOHMS MIN AT 100 VDC FOR 1 MINUTE;
DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC MIN.

TEMPERATURE :
OPERATION: -40°C ~+85°C
STORAGE: -55°C ~+105°C
LIGHTPIPE PAD LAYOUT IS FOR LOW-PROFILE LED PACKAGE.
LED SIZE(LxWxH): 2x1xO.4MM MAX.
RoHS COMPLIANCE.
