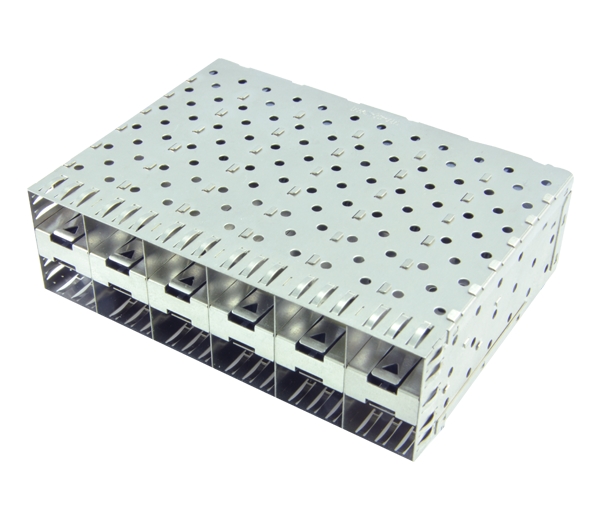

SFP 2×6 Press-Fit Connector

  • Model: KLS12-SFP-026
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Environmental:
1. Contact Resistance: 40 Milliohms MAX Initial.
2. Dielectric Withstanding Voltage: 750V AC/MAX.
3. Insulation Resistance: 1000mΩ Min.
4. Ratings Current: 0.5 Amps MAX.
5. Ratings Voltage: 120 volts AC.
6. Operation: -40℃ ~+85℃.
7. Storage: -55℃ ~+105℃.

Mechanical:
1. Contact: Phosphor Bronze C5210-EH T=0.20mm.
2. Connector Housing: LCO UL 94V-0. Color: Black.
3. Moulded Inset: PA46+30% GF UL 94V-0. Color: Black.
4. Cage: Cpopper Alloy C7701 T=0.25MM.
5. Light Pipes: Polycarbonate. UL 94V-0. Color: Clear
6. Light Pipe Housing: PBT+30%.G.F UL 94V-0.Color: Black.

Plated:
1. Contact Area: Plating Gold 15u”MIN Over 50~80u”Nickel

Mechanical Requirement:
2. Durability: 100 Cycles MIN.
3. Insertion And Extraction Force: 40N Max & 11.5N MAX
