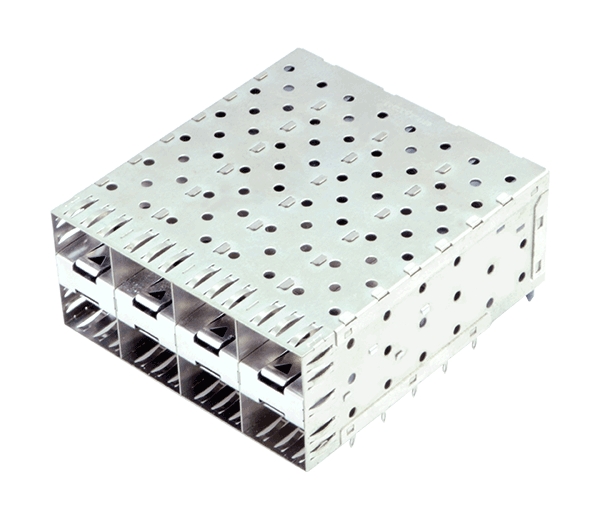

SFP 2×4 Press-Fit Connecto
- Product Details
MECHANICAL:
1. CONTACT: PHOSPHOR BRONZE.
2. CONNECTOR HOUSING: LCP UL 94V-0. COLOR: BLACK.
3. MOULDED INSET: PA46 UL 94V-0. COLOR: BLACK.
4. CAGE: COPPER ALLOY.
5. LIGHT PIPES: POLYCARBONATE. UL 94V-0. COLOR: CLEAR
6. LIGHT PIPE HOUSING: PBT UL 94V-0 COLOR: BLACK.
PLATED:
1. CONTACT MATING AREA: PLATING GOLD OVER 1.27
MICROMETERS MINIMUM NICKEL.
2. CONTACT NEEDLE EYE: 2 .54 MICROMETERS MINIMUM MATTE TIN
OVER 1.27 MICROMETERS MINIMUM NICKEL.
MECHANICAL REQUIREMENT:
1. DURABILITY: 100 CYCLES MIN.
2. INSERTION AND EXTRACTION FORCE: 40N MAX & 11.5N MAX.
ENVIRONMENTAL:
1. LOW LEVEL CONTACT RESITANCE(LCR):
△R 10 MILLIOHMS MAXIMUM FOR SHIELD AND SIGNAL CONTACTS.
2. WITHSTANDING VOLTAGE: 300V AC/MAX.
3. INSUL ATION RESISTANCE: 1×109 OHMS MINIMUM.
4. RATINGS CURRENT: SIGNAL APPLICATION ONLY.
5. RATINGS VOLTAGE: 120 volts AC.
6. OPERATION: – 40°C~+85°C.
7. STORAGE: -55°C ~+105°C.
