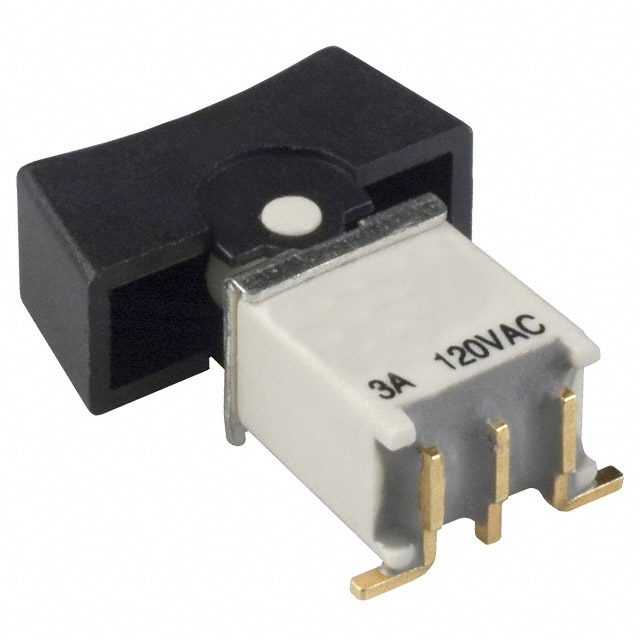

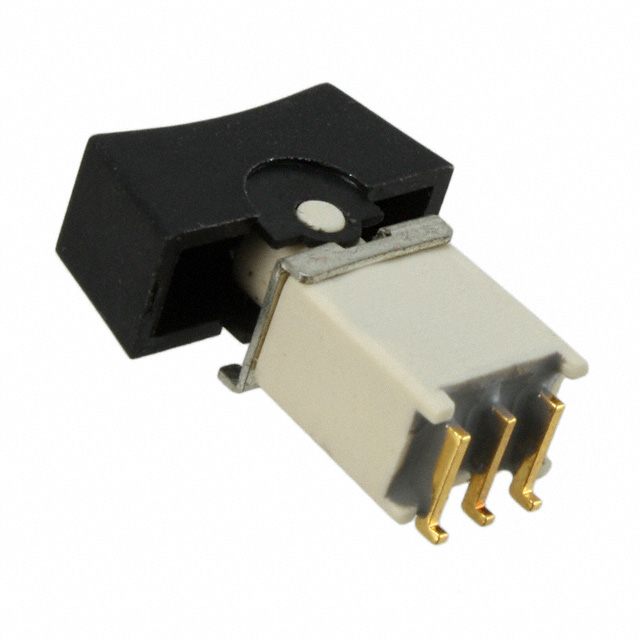

Sealed SMT Sub-miniature Toggle switch-Rocker Type (IP67)

SPECIFICATIONS
Rating: 3A 120VAC Or 28VDC; 1.5A 250VAC;0.4VA 20V AC or DC
CONTACT RATING: Dependent on Contact Material
MECHANICAL LIFE: 30,000 Make-and-Break Cycles
CONTACT RESISTANCE: 20mΩ Max. Initial for Both Silver and Gold Plated Contacts
INSULATION RESISTANCE: 1,000MΩ Min.
DIELECTRIC STRENGTH: 1,000V RMS at Sea Level
OPERATING TEMPERATURE: -30°C to 85°C

MATERIALS
CONTACTS/TERMINALS: Gold Plate Over Nickel Plated Copper Alloy
TERMINAL SEAL: Epoxy
