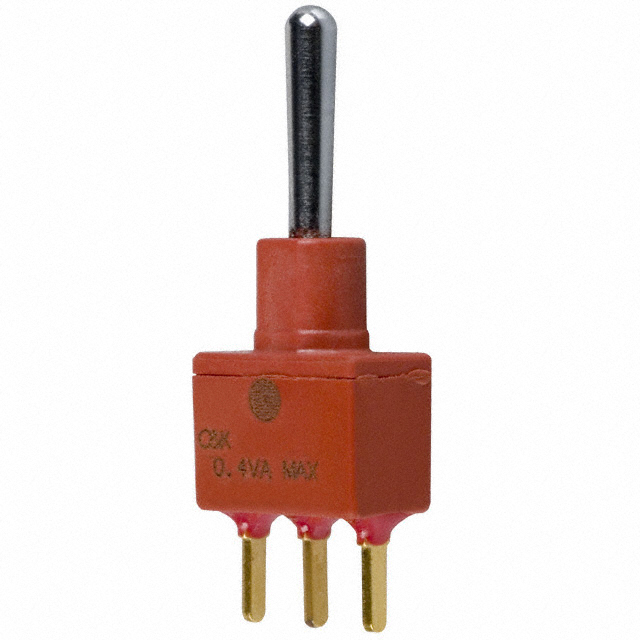

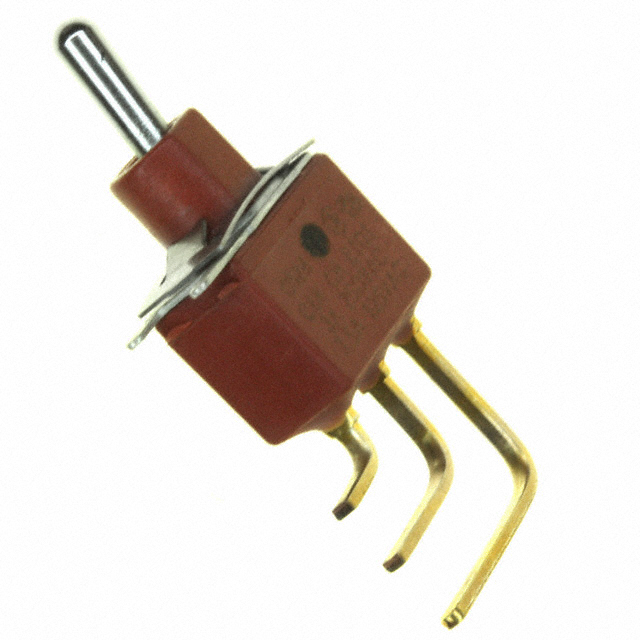

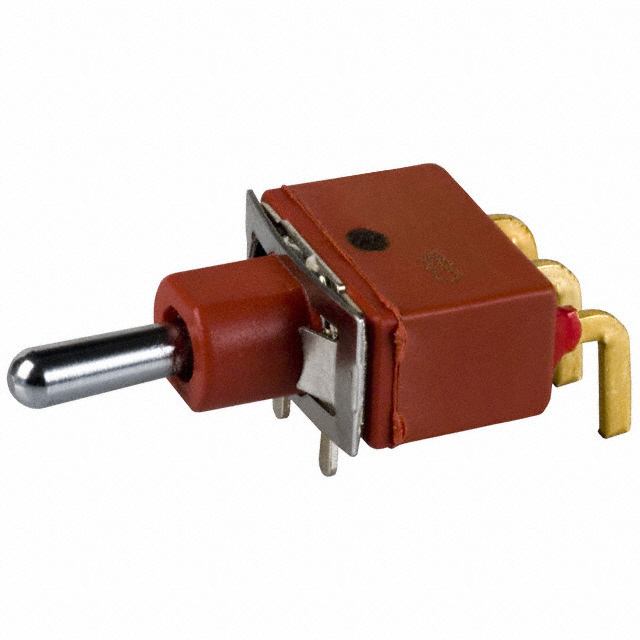

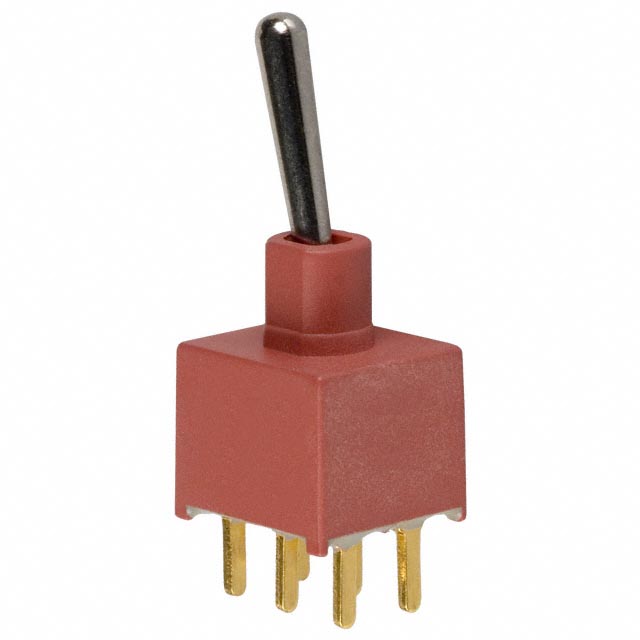

Sealed Miniature Toggle switch

  • Model: KLS7-NE8011 / KLS7-NE8012/

    KLS7-NE8013 / KLS7-NE8014/

    KLS7-NE8019 / KLS7-NE8020/

    KLS7-NE8021 / KLS7-NE8022

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
  • PDF

Sealed Miniature Toggle switch (IP67)
SPECIFICATIONS
Rating: 6A 125VAC Or 28V DC; 3A 250VAC
Contact Resistance: 10MΩ max
Insulation Resistance:1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-30ºC +85ºC
Electrical Life :50,000 cycles

PDF

KLS7-NE8011.pdf
