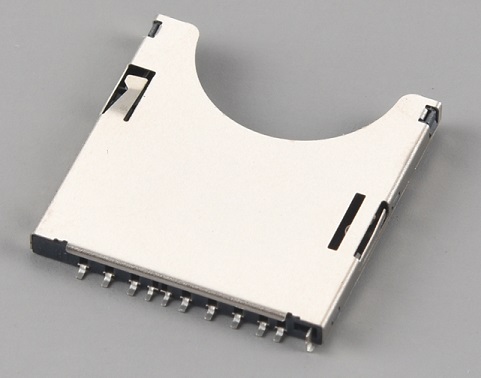

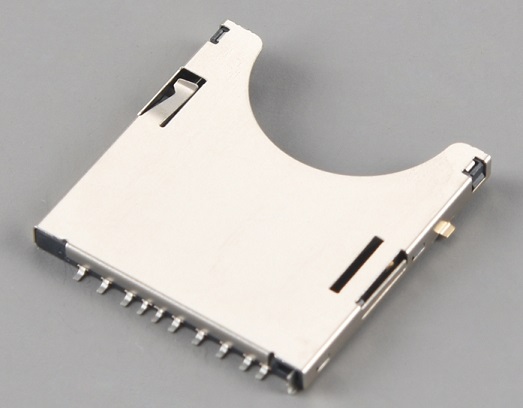

SD card connector push push,H2.8mm,with CD pin

  • Model: KLS1-SD-001 / KLS1-SD-101
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

SD card connector push push,H2.8mm,with CD pin

Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloys.Plated 50u” Ni Overall Plated Au Selective Contact Area,Plated 100u” Sn Over Ni On Solder Area.
Shell:Plated 50u” Ni Overall.

Electrical:
Voltage Rating:125V AC/DC
Current Rating:0.5mA AC/DC Max.

Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Mating Cycles:10000 Insertions.
Operating Temperature: -45ºC~+105ºC
