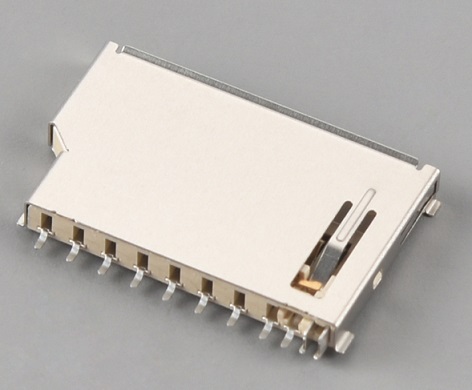

SD card connector push pull,H2.8mm,with CD pin
- Product Details
SD card connector push pull,H2.8mm,with CD pin
Material:
Housing:LCP,UL94V-0.Black.
Terminal:C5191R-EH T=0.20,Contact G/F,Ni 40u” min,Soldering Tin 80u
WP Pin:C5191R-EH T=0.20,Contact G/F,Ni 40u” min,Soldering Tin 80u
CD Pin:C5191R-EH T=0.20,Contact G/F,Ni 40u” min,Soldering Tin 80u
Shell:C2680-H,T=0.20,NI 40u” min.
Electrical:
Contact Current Rating:0.5Amperes.
Dielectric Withstanding Voltage:AC500V rms.
Insulation Resistance:1000MΩ Min.
Contact Resistance:100mΩ Max.
Operating Temperature:-20%%DC TO +85%%DC
Mating Cycles:10000 Cycles.
Operating Temperature: -45ºC~+105ºC
