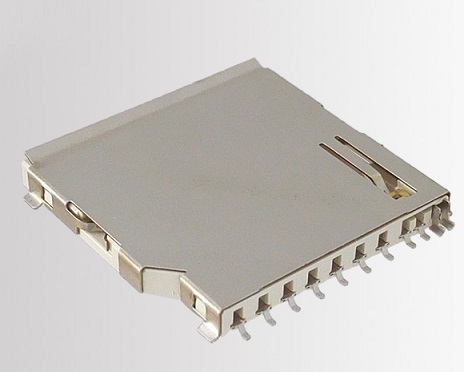

SD card connector push pull,H2.75mm,with CD pin

Material:
Housing:High Temperature Thermoplastic.
Contact:Copper Alloy.
Shell:Copper Alloy,Plated gold on the solder tails,Underplated Nickel over all.
Plating:
Contact Area:Gold Plated over Ni.
Solder Tail:30u” Min Sn Plated Over Ni.
Electrical:
Current Rating:0.5A.
Voltage Rating:250VRMS

Contact Resistance:40mΩ
Dielectric Withstanding Voltage:500V AC.
Insulation Resistance:100MΩ
Insertion Force:40N Max.
Extraction Force:2N Min.
Operating Temperature: -45ºC~+105ºC

KLS1-SD112.pdf
