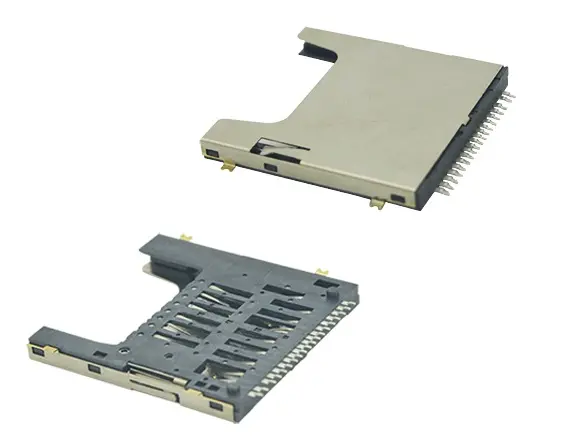

SD 4.0 card connector push push,H3.0mm

Material:
Insulator:LCP rated,UL94V-0，Black.
Contacts:Phosphor Bronze.Tin 80u” Min at Solder Tail,Selectived
Gold on Contact Area Plating.
Shell:Stainless,Gold at Solder Tail,Over Nickel Plating.
Electrical:
Operating Voltage:500V(AC/DC)
Current Rating:1.0A

Insulation Resistance:1000MΩ Min at 250VDC
Dielectric Withstanding Voltage:500VAC/1 Minute.
Contact Resistance:100mΩ Max.
Mating Cycles:10000 Cycles
