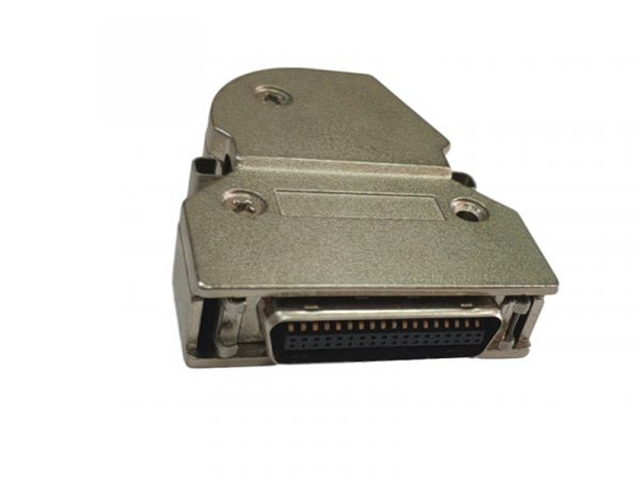

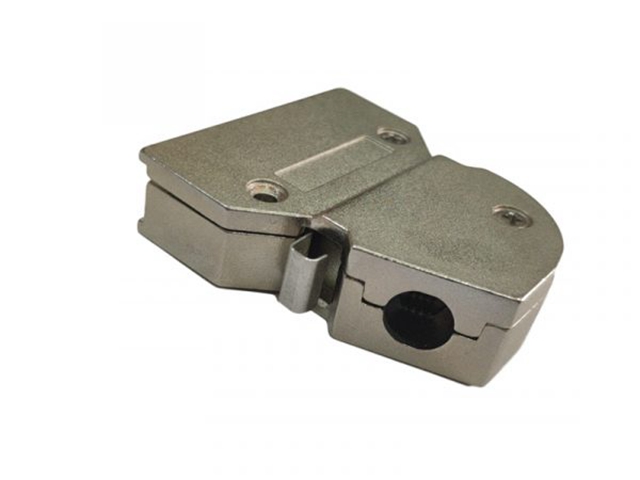

SCSI Connector MDR Type Male Solder Plastic Hood with Latch Clip+Screw+Connector 26 36 50 68 100 Pins

  • Model: KLS1-MDRMK
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

SCSI Connector MDR Type Male Solder Plastic Hood with Latch Clip+Screw+Connector 26 36 50 68 100 Pins

Order information:

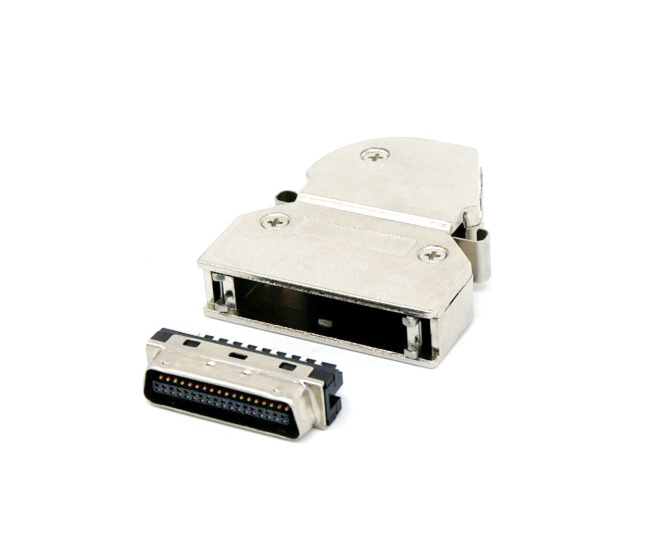

KLS1-MDRMK36
XX-No.of 26 36 50 68 100 Pins

ELECTRICAL
1.Voltage Rating: 250VAC
2.Current Rating: 1.0A
3.Contact Resistance: 30mΩ Max.
4.Insulation Resistance: 500MΩ Min.@500VDC
5.Withstanding Resistance :500VAC RMS. 50Hz 1minute

MATERIALS
1.Housing: Thermoplastic PBT UL 94V-0
2.Contact: Copper Alloy
3.Plating:Gold Plating over nickel in contact,Tin Planting over nickel in solder area
4.Shell: Zinc Alloy, Nickel Plated

ENVIRONMENTAL
1. OPERATION: -40ºC~105ºC
