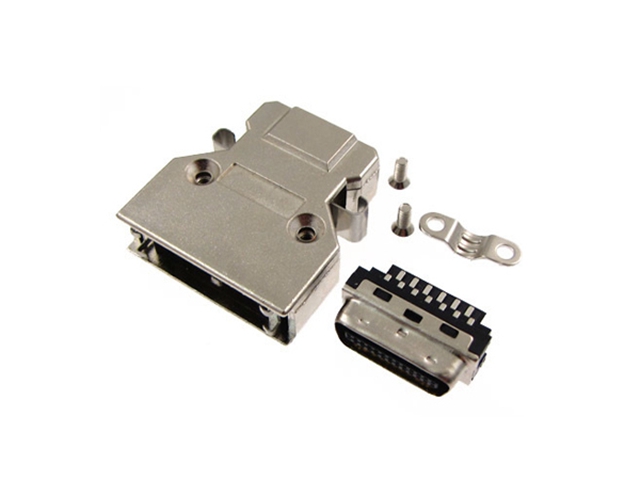

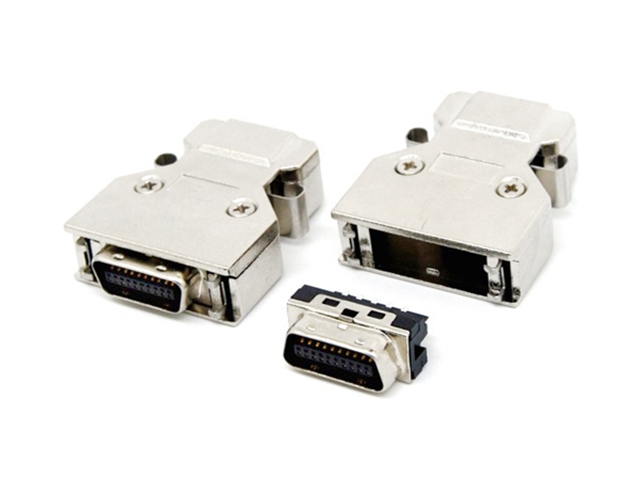

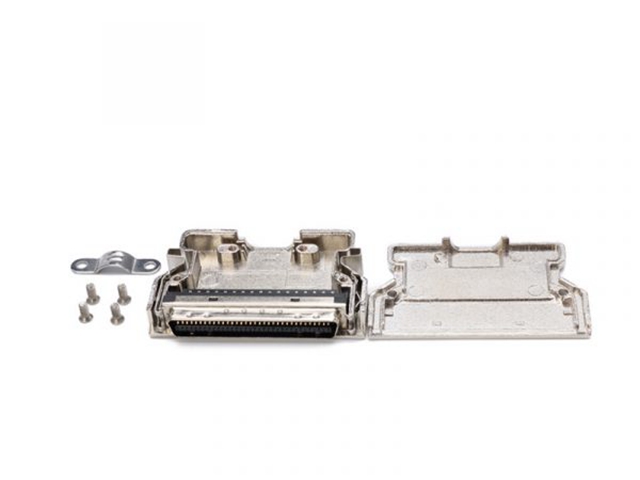

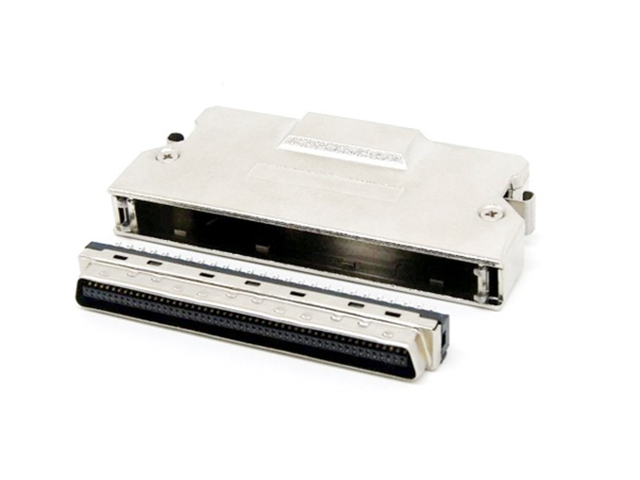

SCSI Connector MDR Type Male Solder Plastic Hood with Latch Clip+Screw+Connector 20 26 36 40 50 68 100 Pins
- Product Details
SCSI Connector MDR Type Male Solder Plastic Hood with Latch Clip+Screw+Connector 20 26 36 40 50 68 100 Pins
Order information:
KLS1-MDRMC36
XX-No.of 20 26 36 50 68 100 Pins
ELECTRICAL
1.Voltage Rating: 250VAC
2.Current Rating: 1.0A
3.Contact Resistance: 30mΩ Max.
4.Insulation Resistance: 500MΩ Min.@500VDC
5.Withstanding Resistance :500VAC RMS. 50Hz 1minute
MATERIALS
1.Housing: Thermoplastic PBT UL 94V-0
2.Contact: Copper Alloy
3.Plating:Gold Plating over nickel in contact,Tin Planting over nickel in solder area
4.Shell: Zinc Alloy, Nickel Plated
ENVIRONMENTAL
1. OPERATION: -40ºC~105ºC
