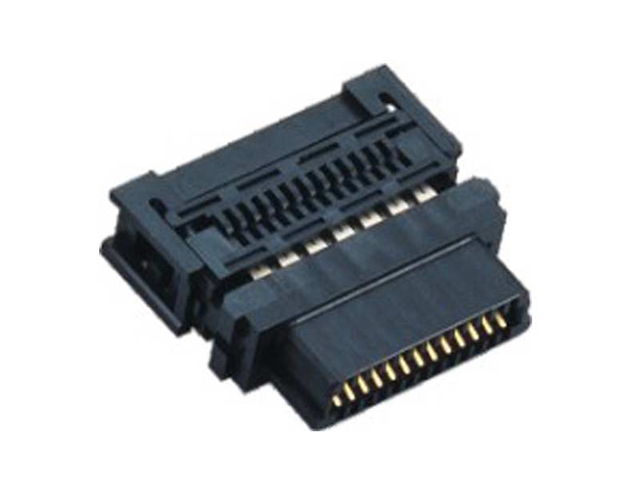

SCSI Connector IDC Type Female 26 Pins

  • Model: KLS1-SCSI-08
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

SCSI Connector IDC Type Female 26 Pins

 ELECTRICAL
 1.Voltage Rating: 250VAC
 2.Current Rating: 1.0A
 3.Contact Resistance: 30mΩ Max.
 4.Insulation Resistance: 500MΩ Min.@500VDC
 5.Withstanding Resistance :500VAC RMS. 50Hz 1minute

MATERIALS

 1.Housing: Thermoplastic PBT UL 94V-0
 2.Contact: Copper Alloy
 3.Plating:Gold Plating over nickel in contact,Tin Planting over nickel in solder area

ENVIRONMENTAL

 1. OPERATION: -40ºC~105ºC
