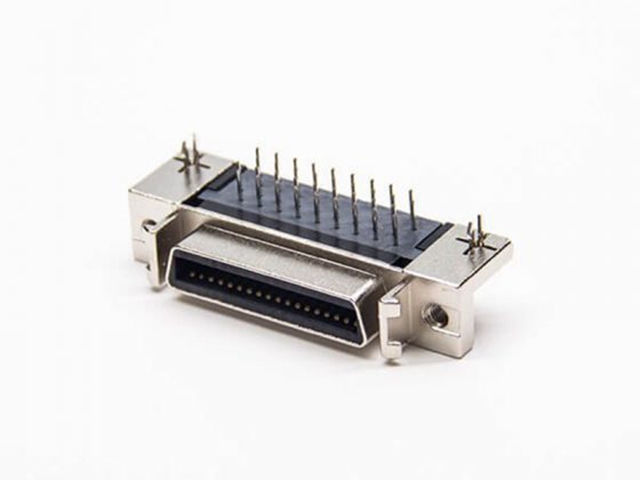

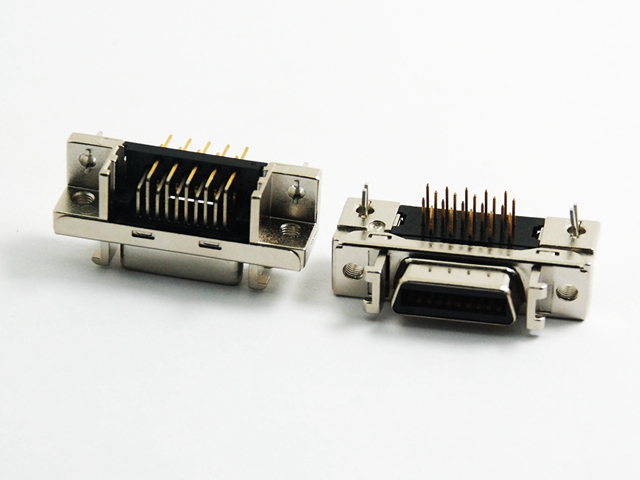

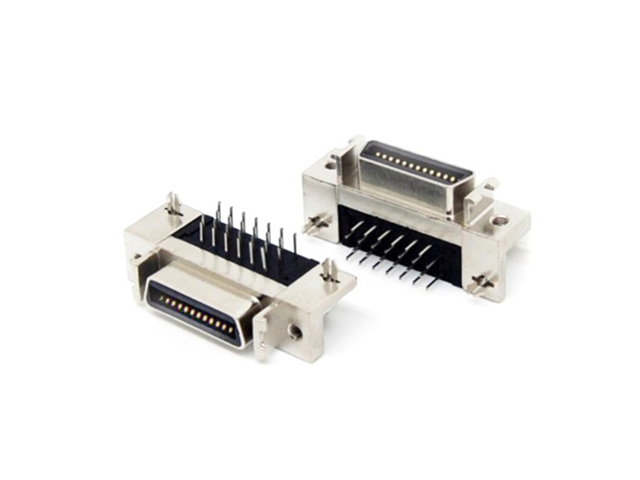

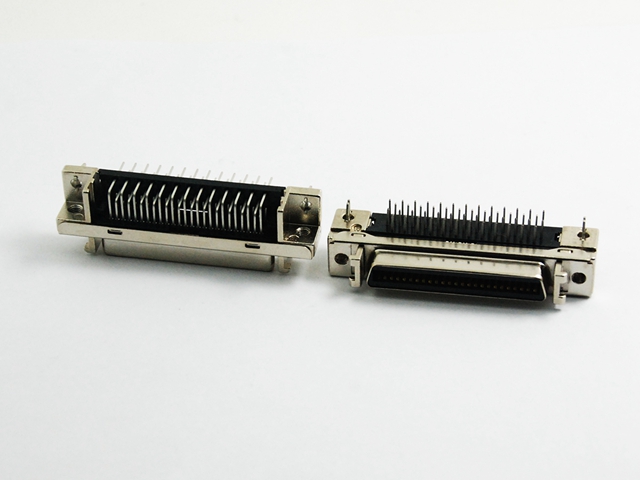

SCSI Connector HPDB Type Female R/A PCB Mount  14 20 26 36 50 68 100 Pins

ELECTRICAL
1.Voltage Rating: 250VAC
2.Current Rating: 1.0A
3.Contact Resistance: 30mΩ Max.
4.Insulation Resistance: 500MΩ Min.@500VDC
5.Withstanding Resistance :500VAC RMS. 50Hz 1minute

MATERIALS

1.Housing: Thermoplastic PBT UL 94V-0
2.Contact: Copper Alloy
3.Plating:Gold Plating over nickel in contact,Tin Planting over nickel in solder area
4.Shell: Zinc Alloy, Nickel Plated

ENVIRONMENTAL

1. OPERATION: -40ºC~105ºC

KLS1-SCSI-04.pdf
