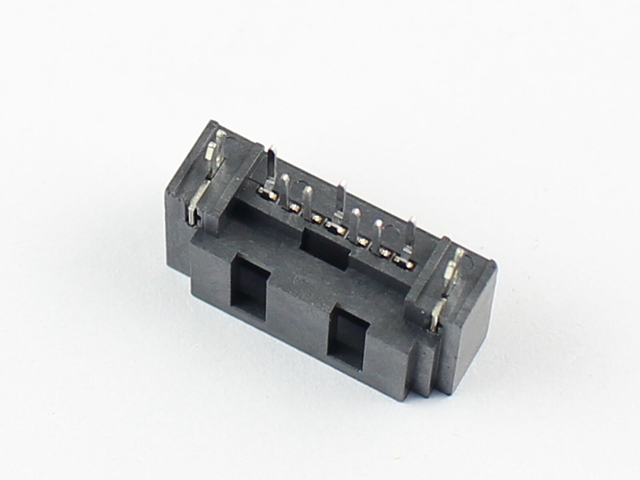

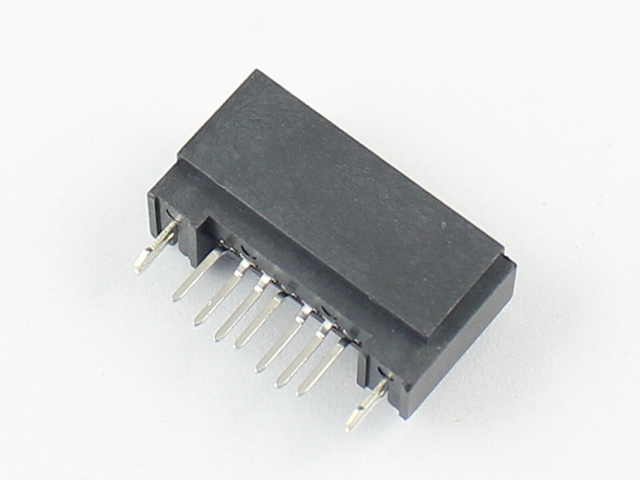

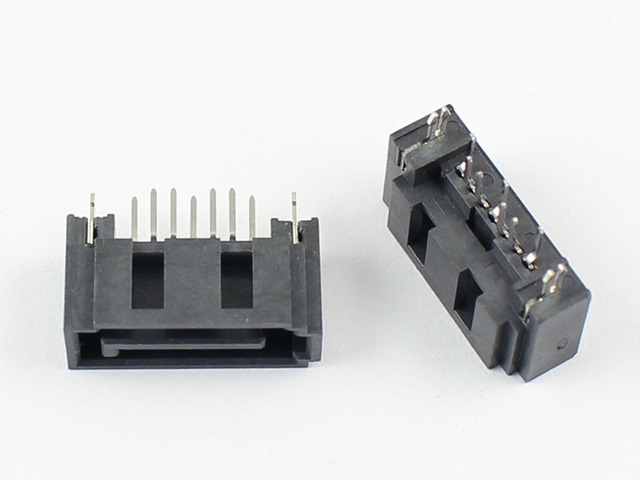

SATA Type A&B 7P Male Connector,Straight

MATERIAL:
Housing:Thermoplastic,UL94-V0
Contact:Copper alloy,50u”min. Nickel plating
Overall;100u” min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.

ELECTRICAL:
Contact Resistance: 25 mΩ  Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

KLS1-SATA003.pdf
