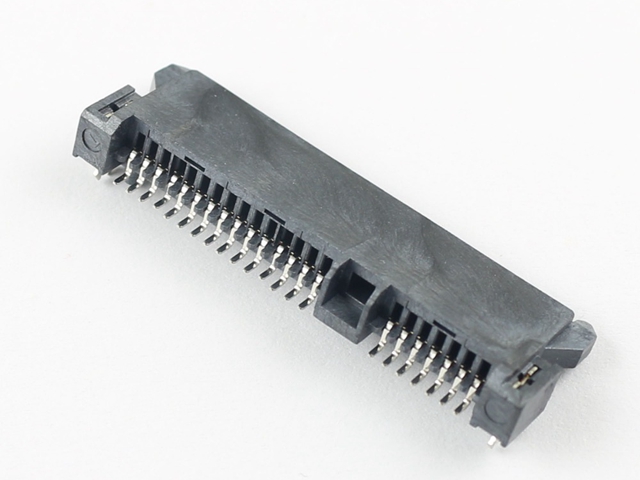

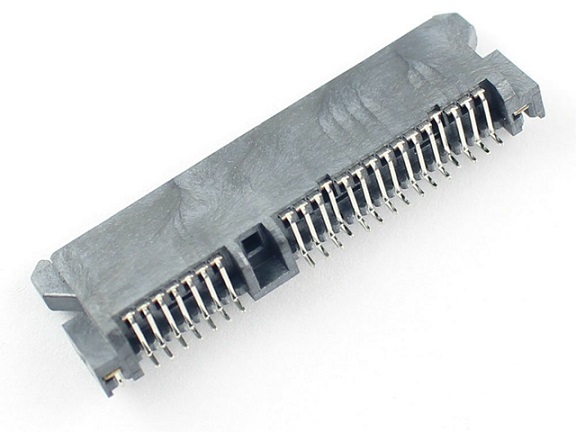

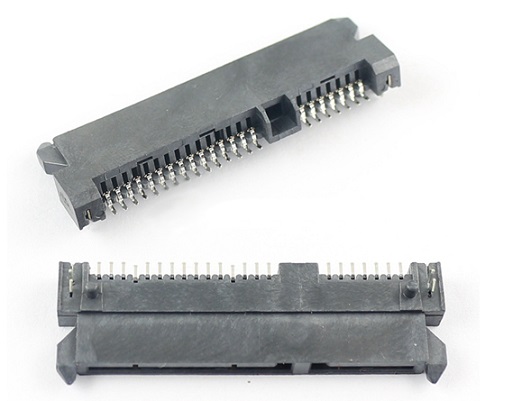

SATA 7+15P Female Connector,SMD,H4.20mm

MATERIAL:
Housing:LCP,UL94-V0  ,Black
Contact:Copper alloy,50u”min. Nickel plating
Overall;100u” min.Tin on solder tail;Gold plating on contact area.
 Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ  Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.
